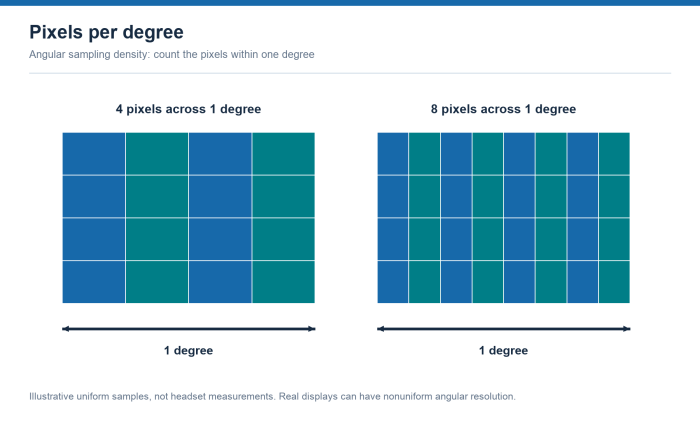

Pixels per degree (PPD) is a measure of the angular resolution of a display: the number of pixels that fall within one degree of the viewer's field of view as the image reaches the eye. It is a common way to state how sharp the image of a head-mounted display looks, because it combines the panel's pixel count with how widely the optics spread those pixels. The higher the PPD, the finer the detail a headset can show. Meta's definition reads: "An angular measurement, PPD measures the number of pixels that are packed within 1° of the field of view (FOV). The higher the PPD, the better the system resolution of the VR headset."[1]
As of October 2026, Meta lists the Meta Quest 3 at 25 PPD and the Meta Quest 3S at 20 PPD.[2] Makers of high-end PC headsets quote higher figures, such as 32 PPD for the original Bigscreen Beyond and up to 51 PPD for the Varjo XR-4 series.[3][4] A display at 60 PPD, one pixel per arcminute, matches 20/20 visual acuity and is a common design goal for AR and VR displays.[5] A 2025 study by the University of Cambridge and Meta Reality Labs measured an average foveal limit of 94 PPD for black-and-white patterns, so 60 PPD is a convention rather than the true limit of human sight.[6]
PPD has become the headline number for comparing display sharpness, because it captures something that a raw resolution figure on its own cannot. Headset makers including Meta, Varjo, Pimax and Bigscreen publish PPD values in their specifications.[2][4][7][3]
Definition and calculation
In the display literature, angular resolution is defined by dividing the total resolution of the display panel by the field of view; it measures the sharpness of the perceived image.[5] A quick approximation for one eye of a headset is therefore:
PPD = horizontal pixels per eye / horizontal FOV in degrees
For the original Oculus Rift DK1, 640 horizontal pixels per eye spread across roughly a 90 degree monocular field of view gives a little over 7 PPD.[8] Pimax uses the same shortcut: "a headset with 2000 horizontal pixels and a 100° FOV has 20 PPD (2000 ÷ 100)."[7]
PPD is related to, but different from, pixel density in pixels per inch (PPI). PPI describes the panel itself, while PPD describes what reaches the eye after the lenses magnify the panel. Meta lists both for its headsets: 1218 PPI and 25 PPD for the Quest 3, and 773 PPI and 20 PPD for the Quest 3S.[2] Boger made the same distinction in 2017: "Higher pixel density for the visual system is not necessarily the same as higher pixel density for the screen because pixels on the screen are magnified through the optics."[8]
The simple division is useful but coarse. It assumes pixels are spread evenly across the field of view, which real optics do not guarantee; some foveated display designs even use "a specially designed lens with intended distortion to achieve non-uniform resolution density."[5] Image sharpness also differs across the lens. Meta notes that sharpness is uniform on a flat 2D display like a TV, but that in VR "you have varying degrees of sharpness at the center and edge of the lens."[1] A single PPD number is therefore best read as an average or a central value, not a figure that holds uniformly across the whole image.
Why it matters more than raw resolution
A panel's pixel count, such as 2064 x 2208 per eye, only tells half the story in a headset. The same panel can look sharp or coarse depending on how widely the optics spread its pixels in front of the eye. Two headsets with identical per-eye resolution will look different if one stretches those pixels across a 90 degree field of view and the other across 110 degrees: the wider field spreads the same pixels thinner, so each pixel covers more of the user's vision and the image looks blockier.
PPD folds both of those factors, the pixel count and the angular spread, into a single number. The same logic explains the screen door effect: when PPD is low, individual pixels and the dark gaps between them grow large enough in the field of view that the user sees a faint mesh laid over the image. Pimax describes higher PPD as "reducing the 'screen door' effect" and making text, textures and distant objects clearer.[7]
The retina target and human visual acuity
The usual benchmark for "good enough" PPD comes from the limit of human sight. The 20/20 vision standard, established by Snellen, holds that the eye can resolve detail of 1 minute of arc (one sixtieth of a degree), which corresponds to 60 pixels per degree. The figure derives from the design of the Snellen chart, where each critical feature of the letters on the 20/20 line subtends 1 arcminute when viewed from 6 m (20 feet).[6] Packing one pixel into each arcminute is therefore treated as a common goal for AR and VR displays,[5] and the limit at which further resolution brings no visible benefit is often referred to as the "retinal resolution."[6] Boger illustrated the idea with two images falling on a 1 x 1 degree patch of the fovea: one of 3,600 pixels (60 x 60) and one of 8,100 pixels (90 x 90), which he argued a viewer would not be able to tell apart.[8] Meta's research division uses the same rule of thumb; its 2025 prototype announcement states that "Retinal resolution is generally considered to be around 60 PPD."[9]
No mainstream consumer headset reaches that figure across its full field of view, which is why VR images still look softer than the real world. In November 2025, UploadVR put affordable headsets at around 25 PPD and the Apple Vision Pro and Samsung Galaxy XR at around 35 PPD.[10] Foveated rendering is one way the industry tries to bridge the gap without an impossible rendering budget. It reduces the quality of rendered content depending on how far a portion of the screen is from the gaze location, to save bandwidth and the computational cost of rendering.[6] Very high central detail becomes affordable to draw, since the expensive pixels are concentrated where the fovea can use them.
The 60 PPD target is a convention rather than a hard ceiling. In a study published in Nature Communications in October 2025, Maliha Ashraf, Alexandre Chapiro and Rafał Mantiuk used a sliding display that allowed continuous control of resolution, with eighteen observers (mean age 25.5). They measured average foveal limits of 94 PPD for achromatic (black-white) patterns, 89 PPD for red-green patterns and 53 PPD for yellow-violet patterns, with individual values as high as 120 PPD. They also tested two peripheral positions (10 and 20 degrees) and found a much larger drop in the limit for colour patterns than for black-white ones.[6] The authors concluded that the 60 to 65 PPD range is not the "retinal resolution" for a display.[6] The University of Cambridge noted that the 60 PPD figure had never been measured for modern displays, and that co-author Chapiro works at Meta Reality Labs.[11] So 60 PPD is a reasonable design goal for "no obvious pixels," but it is not the true upper limit of what the sharpest eyes can detect.
The tension between PPD and field of view
PPD and field of view pull against each other when the display panel is fixed. In Valve's words, "providing a big FOV directly decreases the angular resolution as the available pixels are spread out."[12] Xiong and colleagues state the same trade-off: "a larger FoV leads to a lower angular resolution for a given display resolution."[5] Their review estimates that reaching 60 PPD across a 100 degree field of view requires a 6K resolution for each eye, which may be realizable in VR headsets that use larger panels of 2 to 3 inches, but is much harder in glasses-style AR displays where the microdisplay is small.[5]
Designers therefore trade one against the other. Headsets aimed at a cinematic sense of presence favor a wide field of view and accept a lower PPD, while professional headsets that prize crisp detail, such as those from Varjo, push PPD higher with a differently structured field of view. Varjo's Varjo VR-3, for example, combines a 27 x 27 degree micro-OLED focus area at 70 PPD with a peripheral LCD at over 30 PPD, inside a 115 degree horizontal field of view; Varjo now lists the VR-3 as sold out and points buyers to the XR-4 series.[13] Pimax offers the same headset with a choice of optics: it lists the Pimax Crystal Super with optional optical engines of 57 PPD at 120 degrees horizontal and 50 PPD at 130 degrees horizontal, both with 3840 x 3840 pixels per eye.[7] Pushing both at once requires far more total pixels, which strains panel manufacturing, optics, and the GPU that has to render every frame.
History
| Date | Event | PPD figure |
|---|---|---|
| April 2017 | Yuval Boger, CEO of Sensics, publishes a guest article in Road to VR comparing headsets by PPD against a 60 PPD foveal limit.[8] | DK1 about 7; HTC Vive about 11 |
| February 2019 | Varjo VR-1 ships in 34 countries in North America and Europe at US$5,995 plus a required US$995 annual support package, marketed as "VR in human-eye resolution."[14] | 60 across the central 20 degrees |
| May 2022 | UploadVR reports that a Meta display engineer gave the Meta Quest 2 figure in a Display Week talk.[15] | 21 |
| June 2022 | Meta shows the Butterscotch "retina" research prototype.[16] | 55 |
| December 2022 | Meta publishes its PPD primer for the Meta Quest Pro, updated for Quest 3 in November 2023.[1] | Quest Pro 22; Quest 3 25 |
| June 2023 | Bigscreen gives the official PPD of the Bigscreen Beyond.[3] | 32 |
| August 2025 | Meta Reality Labs Research announces the Tiramisu and Boba 3 prototypes for SIGGRAPH 2025.[9] | Tiramisu 90; Boba 3 30 |
| September 2025 | Meta announces the Meta Ray-Ban Display glasses.[17] | 42 over a 20 degree field of view |
| October 2025 | Ashraf, Chapiro and Mantiuk publish measured resolution limits of the eye.[6] | 94 average (achromatic, fovea) |
PPD was already used to compare headsets in 2017. In his article that year, Boger tabulated approximate horizontal values for the DK1 (7), the OSVR HDK1 (11), the HTC Vive (11), the Sensics dSight (20), the Sensics zSight (27) and the zSight 1920 (32), against 60 for the human fovea.[8] Varjo built its first product around the 60 PPD target. Its 2017 prototype was dubbed "20 | 20", and the VR-1 that shipped on 19 February 2019 paired a 1920 x 1080 micro-OLED "focus" screen at 60 PPD across the central 20 degrees with a 1440 x 1600 context screen, for an 87 degree field of view.[14]
Meta's figures for its own headsets have varied slightly with the source. UploadVR reported in May 2022 that Meta said the Quest 2 has 21 PPD, citing a Display Week 2022 talk by display engineer Cheon Hong Kim,[15] while Meta's December 2022 primer gives the Quest 2 as 20 PPD and says the Quest Pro's 22 PPD is a 10% increase over it.[1] In the November 2023 update, Meta called the Quest 3's display "an upgraded 25 PPD 4K+ Infinite Display with a resolution of 2064x2208 per eye," and described this as "a 25% PPD boost over Quest 2 (20 PPD), as well as a nearly 14% boost over Quest Pro (22 PPD)."[1]
Research prototypes
In June 2022, Michael Abrash of Meta's research division described a visual Turing test, a way to evaluate whether what is displayed in VR can be distinguished from the real world, and said that no VR technology could currently pass it; MIXED listed resolution equivalent to retinal vision among the requirements.[16] According to Abrash, the Butterscotch prototype shown that month reached 55 PPD, which MIXED reported as two and a half times the resolution of the Quest 2; to get there the team developed a new hybrid lens and reduced the usual field of view by half. Abrash called the prototype heavy and bulky.[16]
In August 2025, Meta Reality Labs Research announced two further research prototypes for SIGGRAPH 2025. Meta describes them as "purely research prototypes."[9][18]
| Prototype | Year shown | PPD | Field of view | Notes |
|---|---|---|---|---|
| Butterscotch | 2022 | 55 | About half the usual field of view | New hybrid lens; described by Abrash as heavy and bulky.[16] |
| Tiramisu | 2025 | 90 (3.6 times Quest 3) | 33 x 33 degrees | Up to 1,400 nits, about 3 times the contrast of Quest 3.[9][18] |
| Boba 3 | 2025 | 30 (Quest 3: 25) | 180 degrees horizontal, 120 degrees vertical | Wide field of view design; Meta gives 110 x 96 degrees for Quest 3.[9] |
Meta describes Tiramisu's resolution as "above retinal," but that resolution covers a field of view of only 33 by 33 degrees.[9]
PPD in augmented reality displays
Glasses-style augmented reality displays face the same equation with smaller parts. Xiong and colleagues note that in a glasses-like wearable AR display the conflict between a small display and high resolution becomes obvious, because further shrinking the pixel size of a microdisplay is difficult. Foveated display designs, which project a high-resolution image only onto the fovea, are one proposed answer; the review says that with that approach a microdisplay of 2K resolution can satisfy the need.[5]
Display glasses often keep PPD high by using a small field of view. Road to VR reported that, according to Meta, the Meta Ray-Ban Display uses a 600 x 600 pixel display with a 20 degree field of view at 42 PPD.[17]
Approximate PPD of representative headsets
The values below are approximate. The figure depends on which field of view convention a maker uses and where on the lens it is measured, so cross-brand comparisons should be read as ballpark rather than exact. Most are the manufacturer's own quoted figure; the others are estimates by the cited outlet.
| Headset | Approx. PPD | Basis / notes |
|---|---|---|
| Oculus Rift DK1 | ~7 | Estimate: 640 horizontal px/eye over ~90 degree FOV; early dev kit.[8] |
| HTC Vive | ~11 | Estimate: 1080 horizontal px/eye over ~100 degree FOV.[8] |
| Meta Quest 2 | ~20-21 | Meta's stated figures (20 in Meta's 2022 primer, 21 in a Display Week 2022 talk); 1832 x 1920 px/eye LCD listed by Meta.[15][1] |
| Meta Quest 3S | 20 | Meta's stated figure; 1832 x 1920 px/eye, Fresnel lens, 96 degrees horizontal.[2] |
| Meta Quest Pro | 22 | Meta's stated figure.[1] |
| Meta Quest 3 | 25 | Meta's stated figure; 2064 x 2208 px/eye, pancake lens, 110 degrees horizontal, a 25% PPD gain over Quest 2.[1][2] |
| Bigscreen Beyond | 32 | Bigscreen's stated figure (2023); FOV increased to 102 degrees.[3] |
| Apple Vision Pro | ~34 | iFixit estimate of the average PPD, based on a 3660 x 3200 lit pixel grid per panel and its rough 100 degree FOV measurement. Apple does not publish a PPD figure.[19] |
| Samsung Galaxy XR | ~35 | UploadVR's approximate figure (November 2025).[10] |
| Pimax Crystal Light | 35 | Pimax's stated figure; 2880 x 2880 px/eye.[7] |
| Pimax Crystal Super | 50 or 57 | Pimax's stated figures for its two optional optical engines (130 or 120 degrees horizontal); 3840 x 3840 px/eye.[7] |
| Varjo XR-4 | 51 | Varjo's stated figure ("up to 51 pixels per degree"); 3840 x 3744 px/eye mini-LED, 120 x 105 degree FOV.[4] |
| Varjo VR-1 (focus area) | 60 | Varjo's stated figure for the central 20 degrees.[14] |
| Varjo VR-3 (focus area) | ~70 | Maker spec for the 27 x 27 degree high-resolution central area; periphery is over 30 PPD.[13] |
The Varjo figures illustrate the foveated approach in hardware: a small micro-OLED "focus" panel delivers about 70 PPD at the center, with a separate wider LCD covering the rest of the field of view at over 30 PPD, rather than a single panel trying to hold a high PPD everywhere.[13] Varjo's later XR-4 series instead uses one mini-LED display per eye, which Varjo rates at "up to 51 pixels per degree," and gives the same "up to 51" figure for its passthrough.[4]
Measurement caveats
PPD is convenient but not standardized, and several factors make cross-headset figures only roughly comparable:
- Field of view is hard to state as one number. Valve writes that "it is difficult (really impossible) to make a single objective, quantitative measurement of the FOV." The field of view a user actually sees depends on eye relief, the distance between the front of the lens and the eye; in lens-limited designs above 90 degrees, Valve says "even a single millimeter of excess eye relief reduces your FOV by about 3 degrees," and differences in facial geometry can shift eye relief by about 6 mm either way.[12] Since PPD is pixels divided by field of view, an inconsistent denominator produces inconsistent PPD.
- PPD is not uniform across the lens. Sharpness varies between the center and the edge of the lens, so a quoted number usually reflects the center or an average, not the whole image.[1] Meta's own primer reports separate center and edge sharpness for the Quest Pro, measured as MTF at 5 line pairs per millimeter (0.98 at the center, 0.85 at the edge).[1]
- Pixel count is not the same as perceived sharpness. The optics between panel and eye change what the eye receives, and Boger cautions that higher pixel density for the visual system "is not necessarily the same as higher pixel density for the screen."[8] Xiong and colleagues note that a high-resolution display also needs high-quality optics that support the corresponding modulation transfer function (MTF).[5]
- Listed and visible pixels can differ. UploadVR reported in 2022 that the Quest 2 shows roughly 1720 x 1890 pixels per eye, fewer than the 1832 x 1920 listed on the Meta Store.[15]
- Passthrough has its own figure. Mixed reality headsets can quote a separate PPD for the camera view of the real world; Varjo lists passthrough on the XR-4 series at up to 51 PPD.[4]
For these reasons, PPD is best treated as a useful first-order indicator of how sharp a headset will look, not as a precise, directly comparable specification across brands.
