Virtual Reality

A person using a Meta Quest 3 standalone virtual reality headset

Virtual Reality (VR) is technology that uses computer-generated environments to simulate a physical presence in a virtual world. The system uses position-tracking and responds to the user’s inputs. In VR, the senses are temporarily fooled into believing that the artificial environment is real. The goal of a true VR experience is to create presence - the feeling of physically being somewhere else, of being in another reality .

Virtual Reality is an interactive and immersive medium that can be used to create unique experiences that are unattainable elsewhere. VR has the power to transform games, films and other forms of media. Some enthusiasts call VR the "ultimate input/output device" or the "last medium" because any subsequent medium can be created within VR, using only software .

While Augmented Reality enhances the real world with digital content, Virtual Reality completely replaces the real world with a virtual one, creating a brand new digital environment.

Main characteristics

Interactive - The user’s input controls the system and guides the behavior of the VR experience, while also modifying the virtual environment. This type of interaction engages the user, connecting him to the application in a more natural way since the environment responds directly to the stimuli .

Immersive - An immersive experience has to provide a sense of presence as well as a sense of engagement. Immersion can be divided into three different aspects:

1. According to Bierbaum (2000), “For a VR application to be immersive, it must be perceptually immersive by providing ‘the presentation of sensory cues that convey perceptually to users that they’re surrounded by the computer-generated environment.’” Therefore, the VR must provide the user with an all-encompassing sensory input .

2. The second aspect of immersion is the sense of presence. This implies that the VR experience must give the user the sense they are “in” the virtual world .

3. The final aspect is engagement. It is the degree “to which the user has a sense they are deeply involved in the environment.”

Multisensory - providing a virtual experience that uses multiple human sensory systems increases the level of immersion. While current VR systems cannot provide a full range of stimuli to all human senses, it is expected that in the future this problem will be solved and the VR experience will be completely or almost indistinguishable from reality. The more senses are involved in the VR experience, the higher the degree of engagement and, consequently, this results in a greater sense of presence .

Synthetic - The environment is artificial, created by a computer in real-time .

Hardware Technologies

Head-mounted Display

VR is created by head-mounted displays (HMDs) such as the Oculus Rift. HMDs utilize stereoscopic displays and specialized lenses along with motion tracking hardware to give the illusion that the user is physically inside the virtual world.

To create the illusion of depth, a display is placed very close to the users' eyes, covering their entire field of view. Two images that are very similar but have different perspectives are channeled into each eye to create parallax, the visual phenomenon where our brains perceive depth based on the difference in the apparent position of objects.

Specialized lenses are placed between the display and our eyes. The lenses allow our eyes to focus on the images on the display, even though the display is only a few inches in front of our faces. Without lenses, our entire VR world would become blurry because human eyes have trouble focusing on things that are very close.

The headset tracks the movement of your head and changes the images shown on the display based on it. This process creates the sensation that users are located within the virtual environment. Users of these devices are not only able to experience the computer-simulated environments but also interact with them. Various input methods, from the traditional game controllers and keyboards to the futuristic hand gestures and voice commands, are available or under development.

Motion Tracking

HMD tracks the movement of your head and updates the rendered scene based on its orientation and location. This process is similar to how we look around in real life. There are 2 types of tracking: rotational tracking and positional.

Rotational tracking tracks the 3 rotational movements: pitch, yaw, and roll. It is performed by IMUs such as accelerometers, gyroscopes and magnetometers.

Positional tracking tracks the 3 translational movements: forward/back, up/down and left/right. Positional tracking is usually more difficult than rotational tracking and is accomplished through different Types and Systems.

Motion tracking is not only used to track your head in HMDs but also used to track your hands and rest of your body through various input devices.

Input Devices

Input Devices allow the users to influence and manipulate the virtual realm they are in. These devices include traditional input methods such as gamepad, mouse and keyboard and novel devices that track the position and orientation of your hands, fingers, feet and other body parts.

Platforms

visionOS - Apple Vision Pro

Oculus Rift (Platform)

Oculus Quest (Platform)

SteamVR

PlayStation VR

OpenVR

Daydream

OSVR

WebVR

Windows 10 VR

HP VR

Pico VR

Vive

Additional Information

VR Headset Demo Locations

VR Headsets

See also: VR Headsets

For device specifications, see the headset catalog, headset comparison and historical headset list.

Apps

VR Apps

Developer Resources

Game Engines

Unity

Unreal Engine

Virtual Reality History timeline

Figure 1. Stereoscopic images (Image: www.vrs.org.uk)

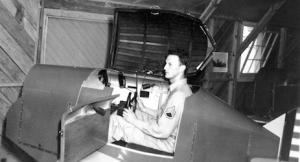

Figure 2. Link Trainer (Image: www.vrs.org.uk)

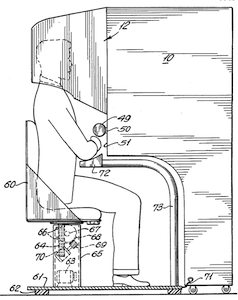

Figure 3. Sensorama (Image: www.vrs.org.uk)

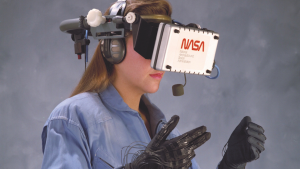

Figure 4. Virtual Environment Reality workstation technology (Image: www.sciencefocus.com)

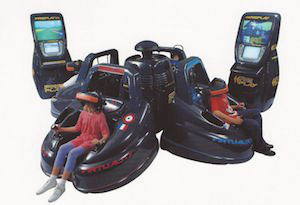

Figure 5. VR Arcade Machines (Image: www.vrs.org.uk)

Virtual reality has a long history of development. While the main advancements happened after the introduction of electronics and computer technology, there are precursors to the ideas and implementation of VR that date as far back as the 1800s. For example, focusing solely on VR as a means of creating the illusion of being someplace else, then the earliest attempts at virtual reality could be considered the panoramic murals (or 360-degree murals). These would fill the viewer’s field of vision with the intention of making them feel a sense of presence at a certain historical event or scene .

What follows is a timeline of the main historical dates and events in the development of VR.

1838 - Stereoscopic viewers and photos

Charles Wheatstone demonstrated that the brain processes different two-dimensional images for each eye into a single three dimensional object (Figure 1). The stereoscope was invented in the same year and used twin mirrors to project a single image. When viewing two side by side stereoscopic images through a stereoscope, it gave the sense of depth and immersion .

In 1839, William Gruber also patented the View-Master stereoscope which was used for “virtual tourism” and still is produced today. The design principles of the stereoscope can still be found in the Google Cardboard and low-budget VR headsets for smartphones .

It could be argued that since the creation of stereoscopic images, people have been interested in making images more three dimensional to enrich its experience .

1929 - Link Trainer

Edward Link creates the first commercial flight simulator - the Link Trainer (Figure 2). It was entirely electromechanical, “controlled by motors that linked to the rudder and steering column to modify the pitch and roll.” It had a small motor-driven device that simulated turbulence and other disturbances. These flight simulators were used by over 500,000 pilots during World War II for initial training and improving skills .

1936 - Pygmalion’s Spectacles

Science fiction writer Stanley G. Weinbaum wrote a short story - Pygmalion’s Spectacles - that had the idea of a pair of goggles that allowed the user to experience a different world through holographic recordings, smell, taste, and touch. This concept can be easily equated to the VR devices that are currently available or under development .

1956 - The Sensorama

Cinematographer Morton Heilig develops the Sensorama, which was patented only in 1962 and might be considered the first true VR system. It was an arcade-style cabinet that stimulated all the senses. It had a stereoscopic 3D display, stereo speakers, vibrating seat, fans, and a scent producer. It was intended to fully immerse the person in a film. Heilig created six short films for his invention titled Motorcycle, Belly Dancer, Dune Buggy, Helicopter, A date with Sabina and I’m a coca cola bottle! Heilig intended the Sensorama to be one in a line of products for the “cinema of the future”. Unable to secure financial backing, his vision never became reality .

1960 - First VR Head-Mounted Display

After the Sensorama, Morton Heilig invented the first example of a virtual reality headset - the Telesphere Mask. It only worked with non-interactive films and didn’t have motion tracking. Nevertheless, the headset provided stereoscopic 3D and wide vision with stereo sound .

1961 - First motion tracking HMD

The true precursor of the HMDs available today was developed by two Philco Corporation engineers, Comeau and Bryan. It was called Headsight and it incorporated a video screen for each eye and a magnetic motion tracking system. This system was linked to a closed circuit camera. The device wasn’t developed for virtual reality applications. Instead, its goal was to allow immersive remote viewing of dangerous situations by the military. The head movements of the used would be replicated by a remote camera, allowing him to look around the environment. While the Headsight was a step in the evolution of the virtual reality headset, it lacked the integration of a computer and image generation .

1965 - The Ultimate Display

Ivan Sutherland developed the concept of the “Ultimate Display”. This device could simulate the natural world so realistically that a user could not tell the difference between actual reality and virtual reality. The concept comprised of a virtual world viewed through an HMD and had augmented 3D sound and tactile feedback; computer hardware that created the virtual environment and maintained it in real time; and interactivity between users and objects from the VR world in a realistic way. Sutherland suggested that the device would serve as a “windows into a virtual world”, and his idea would become a core blueprint for the concepts that encompass current VR .

1968 - Sword of Damocles

Ivan Sutherland and Bob Sproull created the Sword of Damocles, an HMD that was held by a mechanical arm mounted on a ceiling. The device was connected to a computer and displayed simple wireframe graphics to the user. The arm tracked the user’s head movements but was difficult to use. The contraption was also too heavy and bulky for comfortable use .

1969 - Artificial Reality

Myron Kruegere developed a series of experiences called “Artificial Reality”. He developed computer-generated environments that responded to the people in it. He created several projects such as Glowflow, Metaplay, and Psychic Space leading to the development of the Videoplace technology. This enabled communication between people at a distance in a responsive computer-generated environment .

1975 - Videoplace

Myron Kruegere created the Videoplace, which was the first interactive VR platform. The virtual reality surrounded the user and responded to movements and actions without the use of goggles or gloves. The Videoplace was a mix of several other artificial reality systems that he had developed .

1982 - Sayre gloves

The Sayre glove was the first wired glove. It was invented by Daniel J. Sandin and Thomas Defanti from an idea by Richard Sayre. Both scientists were from the Electronic Visualization Laboratory at the University of Illinois, Chicago. The glove used light emitters and photocells in the fingers. When flexed, the quantity of light reaching the photocell changed, translating the finger movements into electrical signals .

1985 - NASA project

The Virtual Environment Workstation Project at NASA’s Ames Research Center in Mountain View, California, was founded with the purpose of producing a VR system that allowed astronauts to control robots outside a space station (Figure 4). The HMD that was developed had super-wide optics (almost an 180-degree field of view) .

1987 - The “Virtual Reality” name is coined

Before this date, even though there had been developments in VR, there wasn’t a term to describe the field. In 1987, Jaron Lanier (founder of the Visual Programming Lab, VPL) finally coined the term “virtual reality”. Lanier, through his company, developed a range of VR gear like the Dataglove and the EyePhone headset. The company also made the first surgical simulator, the first vehicle prototyping simulator, and the first architecture simulators .

1991 - Virtuality Group

By this time, VR devices started to be available to the public (although owning cutting-edge VR was still out of reach). The Virtuality Group launched several arcade games and machines in which players would use a set of VR goggles (Figure 5). The machines had immersive stereoscopic 3D visuals, handheld joysticks, and some unit were networked together for multiplayer gaming. There were some discussions about bringing Virtuality to Atari’s Jaguar console, but the idea was abandoned .

1993 - Sega’s virtual reality headset

At the Consumer Electronics Show in 1993, Sega announced a virtual reality headset for the Sega Genesis console. The prototype had head tracking, stereo sound and LCD screens in the visor. The company intended to have a general release of the product but technical difficulties stopped that from happening and the headset would remain in the prototype phase .

1995 - Nintendo Virtual Boy

The Virtual Boy was a 3D gaming console, marketed as the first portable console that could display 3D graphics. It was released in Japan and North America, and it was a commercial failure for the Japanese company. Some of the reasons for the failure were the lack of color in graphics (only red and black), lack of software support, and difficulty in using the console in a comfortable position. Production of the console was halted in 1996 .

Virtual reality in the 21st century

After 1997, the public interest in VR saw a decrease in what is known as the first VR winter. Nevertheless, the first fifteen years of the 21st century had several advancements in the field of virtual reality. Computer technology, including small and powerful mobile technologies, increased in power while prices were getting more accessible . The interest in VR regained momentum after Palmer Luckey created the first prototype of the Oculus Rift, in 2011, and launched a kickstarter campaign for its development in 2012. The campaign was successful, raising $2.5 million. In March 2014, Facebook bought the company Oculus VR for $2 billion dollars. After this, virtual reality blew up, with multiple companies investing in the development of their own VR systems. The rise of smartphones with high-density displays and 3D capabilities has also enabled the development of lightweight and practical VR devices .
