| Takara HMD Dynovisor | |
|---|---|
| Basic Info | |
| VR/AR | Virtual Reality |
| Type | Head-mounted display |
| Subtype | Console-Powered VR, Vintage VR |
| Platform | NTSC video sources[1] |
| Creator | Virtuality (original technology)[2] |
| Developer | Takara, Virtuality; Media Robotic Co. (1996 report)[3][1] |
| Manufacturer | Takara |
| Release Date | 1996 |
| Price | ¥38,800 (Japan, before tax)[1] |
| Versions | TAK-8510 |
| Requires | NTSC composite video and audio source; external power supply[4] |
| Display | |
| Display | 0.7-inch LCD[5] |
| Resolution | 180,000 pixels (800 × 225, as reported)[6] |
| Image | |
| Field of View | About 45° (1999 study; axis unspecified)[7] |
| Optics | |
| Optics | Pupil Projection System[4] |
| Ocularity | Both eyes; identical images in the 1999 experiment[6] |
| IPD Range | Adjustable (range undocumented) |
| Passthrough | No |
| Tracking | |
| Tracking | No built-in head tracking[8] |
| Rotational Tracking | No[8] |
| Positional Tracking | No |
| Audio | |
| Audio | Hi-Fi Stereo (built-in speakers) |
| Connectivity | |
| Connectivity | NTSC composite video and analog stereo audio[4] |
| Ports | Video, audio and power connections on external interface unit[4] |
| Wired Video | Yes |
| Power | External power supply[4] |
| Device | |
| Dimensions | 225 × 220 × 125 mm (1996 report)[5] |
| Weight | About 600 g (1996 report)[5] |
| Material | High impact ABS molded plastic components |
| Headstrap | Adjustable |
| Color | Gray and blue headset; black interface unit[4] |
| Input | Source equipment controller[1] |

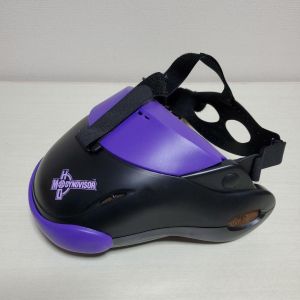

The Takara HMD Dynovisor (model TAK-8510) is a head-mounted display released by Takara, a Japanese toy manufacturer, in 1996. It is a television and video-game viewer for equipment with an NTSC video output.[5][1]
Its display technology came from Virtuality. Unlike the cancelled Atari Jaguar VR, the consumer viewer does not provide built-in head tracking.[2][8]
History
Origins
In a January 1995 announcement, Atari Corporation said it had joined Virtuality the previous October to develop a headset for the Atari Jaguar, targeting Christmas 1995. This was a development plan for the Jaguar peripheral.[9]
The surviving Jaguar VR hardware included separate tracking equipment. JagCube documents red and blue prototypes, revised displays and controls, and infrared sensors. These prototype features should not be transferred to the Dynovisor.[10]
Commercial Release
The August 1996 issue of Play Meter reported joint development by Tokyo's Media Robotic Co. and Virtuality Group and a planned 14 September shipment. Its description distinguished the home TV/video-game display from a full virtual-reality system.[3]
Takara advertised the Dynovisor at ¥38,800 before tax.[1]
Technical Specifications
Display Technology
Takara advertised an apparent 120-inch screen approximately 3 m away, a screen-size comparison rather than an angular field of view.[1]
Kimura and colleagues reported 800 × 225 pixels; Arai and colleagues described a roughly 45° field of view, with no axis specified.[6][7]
| Category | Specification |
|---|---|
| Display Technology | 0.7-inch LCD[5] |
| Resolution | 180,000 pixels (800 × 225, as reported)[6] |
| Refresh Rate | Not established by the cited product evidence |
| Field of View | About 45° in the 1999 study; axis unspecified[7] |
| Optics | Pupil Projection System[4] |
| Pupil Projection | Yes[4] |
| Tracking Type | No built-in head tracking[8] |
| Sensors | No gyroscope specification established |
| Positional Tracking | None[8] |
| Audio Output | Stereo (built-in speakers)[5] |
| Microphone | Not established by the cited product evidence |
| Weight | About 600 g (1996 report)[5] |
| Material | High impact ABS plastic[4] |
| IPD Adjustment | Yes (range undocumented)[4] |
| Connection Type | NTSC composite video and analog audio[4] |
| Power | External power supply[4] |
Tracking and Input
The Dynovisor displays the video supplied by the connected equipment. The game controller belongs to that equipment; it is not a Jaguar-specific tracking interface.[1]
In research, a separate Polhemus FASTRAK system measured pointing and reference positions. These were laboratory sensors, not a built-in Dynovisor tracking system.[6]
Physical Design
The 1996 ASCII report gives dimensions of 225 × 220 × 125 mm and a mass of 600 g.[5]
- Made from high impact ABS moulded components[4]
- Contrast, Brightness and IPD control is within reach[4]
- Inter Pupil Distance (IPD) focus adjustment for user personalization (adjustment range undocumented)[4]
- Adjustable headstrap[1]
Connectivity and Power
- Compatible with any NTSC composite/AV console[4]
- Composite video input (NTSC)[4]
- Red/white analog audio ports (RCA)[4]
An external interface unit has video, audio and power connections. The original owner photographs show the separate unit and its cables.[4]
Audio
The Dynovisor includes built-in stereo speakers. The contemporary ASCII description calls these open speakers.[5]
Applications and Software Support
Takara promoted games and video viewing through AV output.[1]
| Game | VR Support |
|---|---|
| Missile Command 3D | Jaguar VR head tracking belongs to the separate Jaguar VR peripheral, not the Dynovisor.[10] |
| Other Titles | Video viewing depends on a compatible source output, rather than a Dynovisor-specific game mode.[1] |
A 2005 study used a Virtuality Dynovisor with PlayStation 2 and Wipeout Fusion; its Takara model number was unspecified.[11]
Market Reception and Limitations
Technical Limitations
The posture researchers discussed image quality, limited peripheral coverage and 50 ms computer-image updates as possible limitations of their feedback system. This interval does not establish the LCD refresh rate.[7]
Market Challenges
The June 1997 VR News report said Takara was believed to have sold tens of thousands of Dynovisors. This was an attributed contemporary estimate, not an audited lifetime total. The report questioned whether head-worn TVs could attract a mass market without conventional-TV picture quality.[2]
User Experience
In his 2016 account of using the unit, Alex Boz described playing platform, driving, shooting and fighting games. He preferred driving games and reported eye fatigue during prolonged viewing. These are individual impressions, not measured population outcomes.[8]
Usage Warnings
The November 1996 ASCII description reports an automatic power-off timer of approximately 30 minutes. Boz also described a warning to rest the eyes after 30 minutes. His experience does not establish a universal safe exposure duration.[5][8]
Comparison with Sister Product
The Philips Scuba Visor also belonged to Virtuality's consumer-display licensing business. In June 1997, VR News discussed the earlier Philips agreement and a possible renewed North American launch; its projected quantities were expectations, not completed sales.[2]
Legacy
The Dynovisor design was among the consumer HMD assets covered by the proposed management buyout led by Jonathan Waldern in 1997. The June report described the transaction conditionally, while identifying Takara's existing licensed product.[2]
Audiovisual pointing research
Kimura and colleagues used a Takara Dynovisor for targets 0-22.5° from straight ahead and a different custom wide-view HMD for 30-70°. Seven adults pointed at visual and auditory targets while external FASTRAK sensors measured direction. They sat with a chin rest and could not see their hands. In the front region, increasing visual compression reduced pointing slopes with or without sound. The peripheral result came from the other headset.[6]
Standing-posture research
Arai and colleagues tested five healthy men with the Dynovisor, identical landscape images for both eyes, external FASTRAK feedback and 60-second tandem-standing trials on a force platform. Sway measures did not differ significantly from eyes closed; eyes-open viewing without the headset gave smaller values. This small laboratory experiment did not establish clinical benefit or general safety.[7]
Simulation-sickness research
Clemes and Howarth studied 48 volunteers selected for susceptibility: 16 naturally cycling women, 16 women using a combined monophasic oral contraceptive and 16 men. Sessions used a chin rest and stopped at moderate nausea or 20 minutes. Nine naturally cycling women tested at the intended hormone phases showed greater susceptibility on day 12; the remaining seven did not show that pattern. The experiment addressed within-group variation, not headset comparisons or general consumer incidence.[11]
