Lenovo Windows Holographic HMD

Lenovo Windows Holographic HMD
Basic Info
VR/AR	Virtual Reality
Type	Head-mounted display
Subtype	PC-Powered VR
Platform	Windows Mixed Reality (then called Windows Holographic)
Creator	Lenovo
Price	Under US$400 (January 2017 target)
Requires	PC (tethered prototype)
System
Operating System	Windows 10 (planned PC platform)
Display
Display	OLED (announced prototype specification)
Resolution	1440 x 1440 per eye (reported)
Tracking
Tracking	Inside-out tracking (planned)
Positional Tracking	Two front cameras; planned six degrees of freedom
Connectivity
Connectivity	HDMI, USB and audio jack (mockup)
Device
Input	Xbox controller and compatible third-party controllers discussed in 2017

Introduction

The Lenovo Windows Holographic HMD is an unnamed virtual reality headset prototype that Lenovo displayed ahead of and during the Consumer Electronics Show (CES) in Las Vegas in January 2017. It was intended to connect to a PC running Microsoft's Windows Holographic platform, subsequently branded Windows Mixed Reality. The CES unit was a non-functioning mockup that reporters could try on; its display and tracking were not demonstrated in operation.

Lenovo later announced the named Lenovo Explorer consumer headset in August 2017. The January mockup's proposed specifications describe an earlier development stage: for example, contemporary reports specified OLED panels, whereas Lenovo's Explorer documentation specifies LCDs.

Reviewed 15 October 2026. January 2017 non-functioning Lenovo prototype, contemporary design and specification reports, Microsoft platform announcements and distinction from the later Lenovo Explorer; targets distinguished from tested performance and retail specifications About review dates.

Hardware

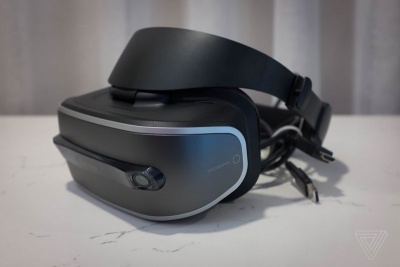

The prototype had a rigid headband with a tightening dial at the back. Its front display assembly hinged upward, allowing the wearer to look outside the headset without removing the band. Contemporary accounts compared its support arrangement with PlayStation VR and Microsoft HoloLens: the band rested high on the forehead and lower at the back of the head, while the display hung in front of the eyes. Windows Central described the arrangement as avoiding pressure on the nose and cheeks.

Lenovo targeted approximately 350 g for the final product, lighter than HTC Vive, according to The Verge; this was not a production measurement.

The displayed cable ended in USB and HDMI connectors. The mockup also had an audio jack; Tom's Hardware reported no built-in headphones and an unconfirmed microphone array.

Features

The reported display specification was 1440 x 1440 pixels per eye using OLED panels. These were proposed hardware specifications, not an image-quality test: journalists could not assess the display through a running CES unit. The Verge reported a higher pixel resolution than the HTC Vive and Oculus Rift.

The two cameras on the front were associated with the proposed six-degree-of-freedom inside-out tracking system. Microsoft's partner-headset plan used sensors on the headset rather than requiring external tracking cameras. This described the intended tracking arrangement; it did not establish the prototype's tracking accuracy, environmental limits or ability to recognize arbitrary objects.

Lenovo was not developing its own accompanying motion controllers at the time of the January reports. Windows Central discussed an Xbox One controller and future controllers conforming to the Windows Holographic specification. Those early input plans preceded the optional motion controllers later announced for Explorer.

Lenovo planned a floating theater-style viewer for Windows Store applications and adaptations of some HoloLens software. These were announced intentions, without a demonstration in the mockup.

Unanswered questions at CES

The January presentation left several technical questions open. Tom's Hardware reported that Lenovo had not disclosed the lens type, field of view or refresh rate. It also lacked detailed information about the tracking sensors and microphone array. The presence of two cameras did not, by itself, demonstrate working camera passthrough or a particular mixed reality application.

The distinction between the prototype and later retail hardware is material when reading its early specifications:

Item	January 2017 prototype reporting	Later Explorer documentation
Displays	OLED; 1440 x 1440 pixels per eye, reported before a working demonstration	LCD; 1440 x 1440 per eye
Lens and refresh rate	Not disclosed in the CES account	Fresnel lenses and 90 Hz listed for Explorer
Input	Xbox controller or future compatible controllers discussed; Lenovo had no accompanying motion-controller design in the January account	Headset-only and headset-with-motion-controllers packages documented

Cost and Release Date

Lenovo targeted a price under US$400. The Verge reported US$300-400, nearer US$300, and intended 2017 shipment. These were plans for the eventual product; the displayed unit remained a mockup.

Tom's Hardware also reported Microsoft's advice to manufacturers to target a combined PC-and-headset package costing no more than US$1,000. Its approximately US$600 PC figure was a calculation within that proposed budget, not an announced Lenovo computer bundle. Microsoft's October 2016 announcement had identified Lenovo among five PC manufacturers preparing headsets, with prices across the partner range starting at US$299.

Later development

At Computex in May 2017, Microsoft showed a Lenovo Windows Mixed Reality headset design and described its built-in sensors and inside-out tracking as part of a planned release later that year. On 31 August, Lenovo announced Explorer under its retail name. Microsoft's accompanying announcement listed US$349 for the headset alone and US$449 with motion controllers, with holiday availability planned and regional prices subject to variation. Detailed retail specifications and subsequent software compatibility belong to the Explorer article.
