FOVE
More actions
| FOVE | |
|---|---|
| Basic Info | |
| VR/AR | Virtual Reality |
| Type | Head-mounted display |
| Subtype | PC-Powered VR |
| Creator | Yuka Kojima, Lochlainn Wilson[1] |
| Developer | FOVE |
| Release Date | Prototype project announced July 25, 2014; developer kit shipped as FOVE 0 in 2017[2][3] |
| Price | US$349 earliest-bird pledge; US$375 early-bird and US$399 standard headset pledges (2015)[4] |
| Website | http://www.getfove.com/, http://fove-inc.com/ |
| Versions | Development prototypes (2014-2016)[2][5] |
| Requires | PC with dedicated graphics and DisplayPort (2015 campaign)[6] |
| Successor | FOVE 0[3] |
| System | |
| Operating System | Windows initially; Mac and Linux ports planned in early 2016[7] |
| Display | |
| Display | 5.8-inch low-persistence display (2015 campaign)[6] |
| Resolution | 2560 x 1440 (2015 campaign)[6] |
| Refresh Rate | 60 fps; 90 fps projected (2015 campaign)[6] |
| Persistence | Low (2015 campaign)[6] |
| Precision | Eye tracking: less than 0.2° projected (2015 campaign)[6] |
| Image | |
| Field of View | 100+ degrees (2015 campaign claim)[6] |
| Tracking | |
| Tracking | Eye tracking[2] |
| Rotational Tracking | Inertial sensors[2] |
| Positional Tracking | Optical tracking developed in 2016 after Lighthouse plans were dropped[8][1] |
| Update Rate | Eye tracking: 120 fps per eye (2015 campaign)[6] |
| Audio | |
| Audio | 3.5 mm headphone port projected in the 2015 campaign[6] |
| Camera | Two infrared eye-tracking systems (2015 campaign)[6] |
| Connectivity | |
| Connectivity | USB 3.0, DisplayPort; 3.5 mm headphone port projected (2015 campaign)[6] |
| Device | |
| Weight | 400 g projected (2015 campaign)[6] |
| Input | Gaze input[2] |

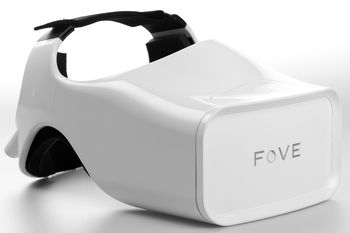

FOVE is the eye-tracking virtual reality headset project developed by the startup founded in Tokyo by Yuka Kojima and Lochlainn Wilson. The early prototypes and 2015 crowdfunding campaign preceded the developer kit marketed as FOVE 0. Kojima and Wilson were the company's CEO and CTO, respectively, during this development period.[1][9] Announced in 2014, FOVE's technology used infrared sensors inside the headset to track eye movements and let applications respond to where the wearer looked.[2]
The company described FOVE as the first eye-tracking headset for home use. Guinness World Records lists FOVE as the holder of its "First eye-tracking virtual reality (VR) headset" record, dated May 2015.[2][10]
Features
FOVE combined head tracking with eye tracking, so an application could use the direction of the wearer's gaze as an input. Its developers described gaze-based aiming, contextual interfaces and virtual characters that reacted when watched.[2][11]
| Function | Documented purpose during development |
|---|---|
| Aim with the eyes | Select or target objects in a three-dimensional scene by looking at them, including weapon aiming and contextual menus.[11] |
| Eye contact | Change a virtual character's behavior in response to the user's gaze, rather than relying only on head orientation.[2] |
| Foveated rendering | Allocate rendering work according to gaze direction. FOVE described a proof-of-concept scene in which fewer peripheral pixels and simpler shaders reduced the rendering workload.[7] |
| Gaze-dependent depth of field | Blur portions of a scene according to where the wearer looks. In its February 2016 update, FOVE distinguished this image effect from the eye's physical accommodation.[7] |
| Natural head movement | FOVE promoted gaze input as a way to avoid unnecessary head movements, and claimed it could reduce simulator sickness. This was a claimed benefit in the development announcements.[12] |
The campaign's FAQ cautioned that cosmetic coloured contacts could prevent the sensors from recognising the eyes and pupils correctly, and that some glasses frames could obstruct eye tracking.[13]
Hardware
The campaign FAQ defined projected values as goals the team expected to achieve. Its specification graphic mixed these targets with other listed specifications.[13][6]
| Item | 2015 campaign specification or target |
|---|---|
| Display | 5.8 inches (14.7 cm); WQHD, 2560 x 1440; low persistence |
| Display frame rate | 60 fps, with 90 fps projected |
| Field of view | 100+ degrees; the graphic did not identify an axis |
| Eye tracking | Two small infrared systems; 120 fps per eye; accuracy below 0.2 degrees projected |
| Head tracking | Inertial unit described as "6/9 DOF"; positional tracking projected |
| Connections | USB 3.0 and DisplayPort; 3.5 mm headphone port projected |
| Weight | 400 g projected |
The figures above describe the campaign, rather than measurements of the shipping developer kit.[6]
The July 2015 campaign-closing release described a 5.7-inch display, compared with the campaign graphic's 5.8-inch figure.[12] The prototype design continued to change during development. In February 2016 FOVE reported difficulties sourcing infrared LEDs, lenses and OLED displays, including the discontinuation of its prototype eye-tracking camera sensors. Its July 2016 redesign removed side sections of the earlier housing with the stated aim of reducing size and weight and improving manufacture and fit.[8][5]
Positional tracking
FOVE's initial announcement described a gyroscope, accelerometer and magnetometer for orientation, with external motion tracking for position. The campaign initially treated head-position tracking as a feature still in development.[2][13]
On June 16, 2015 the company announced OpenVR and SteamVR support and proposed Lighthouse integration as a US$700,000 stretch goal. After announcing Samsung Ventures investment on June 25, FOVE said it could pursue Lighthouse support despite the campaign finishing below that stretch goal. Its July campaign-closing release committed to the integration, with base stations and additional controllers sold separately.[14][15][12]
On February 20, 2016 FOVE dropped Lighthouse from the Kickstarter release to avoid further delay and announced its own optical solution instead. The company offered a 30-day refund window to backers. By May it described infrared LEDs behind the headset's cover, tracked by external infrared cameras. This positional system was separate from the inward-facing sensors used to track the eyes.[8][1]
Apps and demonstrations
Early FOVE applications illustrated gaze interaction rather than a catalogue of generally compatible games. The 2015 campaign FAQ said game developers needed to add FOVE support to their titles.[13]
Eye Play the Piano was a collaboration between FOVE and the University of Tsukuba's Special Needs Education School for the Physically Challenged. Its interface let a user look at a panel and blink to trigger a piano note. It provided single-note and chord modes with assignable sounds, allowing performance without hand or arm input.[16]
Digital Content Expo's 2015 exhibition entry described an actual FOVE headset demonstration using eye tracking for aiming, interfaces and character interaction. The project subsequently exhibited its revised headset design at Comic-Con and SIGGRAPH 2016.[11][5]
Developer
The FOVE SDK was intended to let developers adapt existing VR content or create applications using eye tracking. Early announcements named Unity, Unreal Engine and CryEngine as development targets; this did not establish that every existing game made with those engines supported the headset.[12][13]
The public SDK v0.4.0 release on May 10, 2016 provided a C++ interface for custom rendering engines and native applications, including per-eye view matrices and distortion data. Unity and Unreal plugins were still described as forthcoming in that release. The May 31 update then documented a Unity plugin and SDK v0.4.1.a, with support for engineering-verification sample hardware.[17][1]
The compositor was developed as a separate process from the application. FOVE's January update, published February 3, 2016, described a Direct3D implementation on Windows, with OpenGL and Mac OS/Linux ports planned later. It also described a proof-of-concept scene demonstrating gaze-dependent depth of field and foveated rendering.[7]
History
| Date | Development milestone |
|---|---|
| July 25, 2014 | FOVE announced the headset project and an existing prototype. At this stage, a developer kit was planned for summer 2015.[2] |
| September 9, 2014 | FOVE demonstrated its headset at TechCrunch Disrupt SF. The event's recording is dated September 9, 2014, despite the current video page's later publication date.[18] |
| May 19-July 4, 2015 | The Kickstarter campaign sought US$250,000 and finished with US$480,650 from 1,480 backers. FOVE said the goal was reached within three days.[4][14] |
| June 25, 2015 | FOVE announced Samsung Ventures investment and the ability to proceed with Lighthouse support.[15] |
| February 4, 2016 | TechnoBlood and FOVE announced a partnership to provide headset experiences in Japanese and South Korean internet cafes through the planned Virtual Gate Project.[19] |
| February 20, 2016 | FOVE moved its developer-kit shipment target from spring to autumn 2016 and dropped Lighthouse for the Kickstarter release.[8] |
| March 23, 2016 | FOVE announced US$11 million in Series A financing led by Colopl VR Fund, with Hon Hai venture fund "2020" and Samsung Venture Investment participating.[20] |
| May 10, 2016 | Public SDK v0.4.0 released.[17] |
| July 28, 2016 | FOVE announced its revised industrial design for Comic-Con and SIGGRAPH demonstrations.[5] |
| November 2016 | Preorders opened for the developer kit named FOVE 0. The Japanese announcement specified November 3, Japan time, US$599 pricing and a US$549 first-week offer.[9] |
| January 2017 | FOVE reported that FOVE 0 units had left its factory on January 8 and reached a logistics centre, with delivery to backers to follow.[3] |
Crowdfunding and transition to FOVE 0
The campaign's earliest headset pledge was US$349, followed by US$375 early-bird and US$399 standard headset tiers. The reward descriptions included the headset and developer resources such as the SDK, documentation, samples and engine plugins. Most headset tiers estimated delivery in May 2016, while the US$499 first-shipment tier estimated March 2016. These were delivery forecasts.[4]
The campaign FAQ separately forecast a retail price of US$400-US$500 and shipment in the first quarter of 2016. FOVE's July 2015 release gave May 2016 as the expected start for ordinary developer-kit backers, excluding earlier cohorts.[13][12]
The headset that reached the shipping stage was FOVE 0. Its November 2016 announcement specified 70 Hz display operation, a 520 g weight and HDMI/USB connections, distinguishing it from several of the earlier campaign specifications. The announcement forecast late-2016 shipment to Kickstarter backers; the January 20, 2017 update later reported actual factory departure on January 8. Detailed shipping-device specifications and subsequent support are covered in the FOVE 0 article.[9][3]
