Waveguide display

From VR & AR Wiki
(Redirected from Waveguide Display)

A waveguide display is an optical near-eye display technology that delivers a digital image to the eye by trapping light inside a thin transparent substrate through total internal reflection (TIR) and extracting it toward the pupil, while expanding the small projector aperture into a larger viewing window. Because the substrate stays clear, the user sees the projected image overlaid on the real world, which makes the waveguide the dominant optical combiner architecture in augmented reality (AR) glasses and headsets.[1][2]

Waveguide displays underpin most see-through AR devices, including the Microsoft HoloLens 2 (52 degree diagonal field of view), Magic Leap 2 (70 degree diagonal field of view), the Meta Ray-Ban Display glasses, Snap Spectacles, and the Vuzix enterprise line. Two optical families account for nearly all shipping products: diffractive waveguides, which steer light with nanometre-scale gratings, and reflective or geometric waveguides, which steer light with arrays of embedded partial mirrors.[3][4] The waveguide is distinct from competing AR combiners such as Birdbath optics, which use a curved partial mirror and a beam splitter rather than a guided-light substrate.[5]

Operating principle

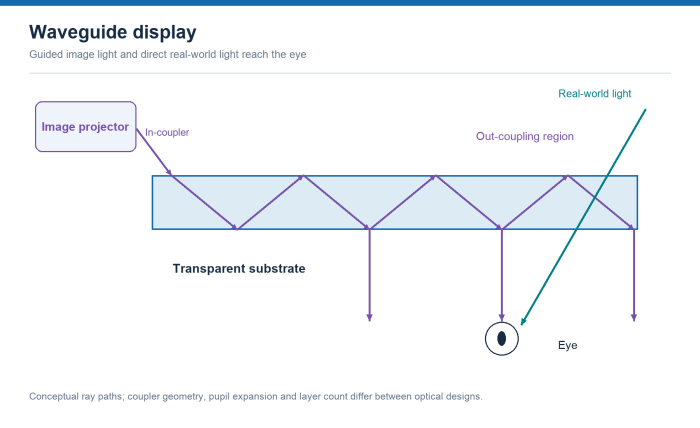

A waveguide display has three optical stages. An in-coupler redirects light from a microdisplay light engine into the substrate at angles above the critical angle so the light is trapped. The substrate is a thin slab (roughly 0.5 to 2 mm) of high refractive index glass or polymer that carries the light by repeated TIR bounces. An out-coupler extracts the light gradually across its area toward the eye.[1][6] The light engine commonly uses LCoS, DLP, laser beam scanning, micro-OLED, or microLED microdisplays.[2]

Total internal reflection

Total internal reflection occurs when light inside a denser medium with refractive index n1 meets the boundary with a less dense medium (n2) at an angle greater than the critical angle, given by the inverse sine of n2 divided by n1.[7] For a glass-to-air interface with n around 1.5, the critical angle is about 42 degrees. A higher index substrate supports a wider range of trapped angles, which is why index is the single most important material parameter for field of view.[6]

Exit pupil expansion

Exit pupil expansion (EPE) enlarges the small projector aperture (typically 2 to 5 mm) into a usable eye box of roughly 10 to 20 mm so the image stays visible as the glasses shift on the face and across different interpupillary distances.[1] One-dimensional EPE replicates the pupil along a single axis. Two-dimensional EPE uses a turn or fold region that expands the pupil in one direction and redirects the light before a final out-coupling region expands it in the orthogonal direction. This pupil replication is the property that lets a waveguide deliver a large eye box and a large field of view at the same time, which conventional refractive optics cannot do without growing in bulk.[1][2]

Field of view limits

The maximum field of view a waveguide can carry is bounded by the substrate index and the achievable TIR angles; it scales roughly with twice the inverse sine of one over n. With a single-layer diffractive substrate at n around 2.0 the monocular field of view is near 60 degrees, and full-color RGB operation reduces the practical figure further because different wavelengths diffract at different angles.[2] Reaching wider angles in glass historically required stacking multiple substrate plates, one reason high-index materials such as silicon carbide have attracted attention.[8]

Types of waveguide display

The shipping AR market divides cleanly into two families, diffractive and reflective (geometric), with holographic and polarization-grating variants treated as subtypes or emerging approaches.[3][9]

Comparison of waveguide display families
Family Working principle Strengths Weaknesses Typical proponents
Diffractive (surface relief gratings) Periodic nanostructures etched or imprinted into the surface diffract light into and out of the substrate Scalable nanoimprint lithography manufacturing, thin and light, mature supply chain Low efficiency, wavelength dispersion causing rainbow artifacts, outward "eye glow" Microsoft HoloLens, Magic Leap, Vuzix, Dispelix
Diffractive (volume holographic gratings) Refractive-index modulations recorded inside a photopolymer layer act as Bragg gratings Good transparency, high angular selectivity, roll-to-roll capable Complex recording, environmental sensitivity, often multi-layer for full color DigiLens, TruLife Optics, Akonia Holographics
Reflective / geometric Cascaded partially reflective mirrors embedded in the substrate reflect light to the eye High efficiency, accurate color with no rainbow, low outward leakage Precision gluing, slicing and polishing; manufacturing cost and yield Lumus
Polarization volume gratings Cholesteric liquid crystal layers with helical structure diffract one circular polarization Very high diffraction efficiency in theory, switchable Polarization dependent, temperature sensitive, limited commercial use Research stage

Diffractive waveguides

Diffractive waveguides use periodic nanostructures to bend light by diffraction, and they account for most enterprise AR devices because the gratings can be mass-produced by nanoimprint lithography.[3] The most common form is the surface relief grating (SRG), in which nano-ridges are etched or embossed into the substrate surface. Grating profiles include binary (vertical-walled), slanted binary (inclined walls that suppress unwanted diffraction orders), blazed (triangular), and multilevel stepped approximations.[1] The Microsoft HoloLens 2 pairs a laser beam scanning light engine with a "butterfly" surface-relief waveguide to widen the field of view from the original HoloLens (34 degrees diagonal) to 52 degrees diagonal.[10] Magic Leap 2 uses a nanoimprinted diffractive waveguide reaching 70 degrees diagonal (45 by 55 degrees) at roughly 2,000 nits.[11]

A second diffractive subtype, the volume holographic grating (VHG), records the diffraction pattern as a refractive-index modulation inside a photopolymer film, operating by Bragg diffraction with high wavelength and angular selectivity.[12] DigiLens builds switchable holographic gratings using a polymer-dispersed liquid crystal process; its standalone ARGO enterprise glasses, announced in January 2023, use a dual-axis "crystal" waveguide built from overlapping diffractive grating layers and run on a Qualcomm Snapdragon XR2 chip.[13]

Reflective (geometric) waveguides

Reflective waveguides, also called geometric waveguides, steer light with an array of partially reflective mirrors embedded inside the substrate rather than with gratings.[9] Lumus developed this Light-guide Optical Element architecture and is the main commercial proponent. Because reflection is wavelength independent, geometric waveguides reproduce color without the rainbow fringing of diffractive designs, leak little light outward (less visible "eye glow"), and reach higher optical efficiency; Lumus states its design can be up to ten times more luminance-efficient than diffractive competitors while keeping the lens under 2 mm thick.[9][3] The tradeoff is manufacturing: the substrate is built by coating glass plates with semi-reflective dielectric stacks, bonding the coated plates, slicing the stack at precise angles, and polishing to optical quality, a process with demanding tolerances and yield challenges.[3][9]

Lumus demonstrated a 50 degree two-dimensional prototype called Maximus in 2022, then announced the second-generation Z-Lens 2D architecture at CES 2023. Z-Lens uses transflective partial mirrors to expand the image along both the horizontal and vertical axes, shrinks the projector by more than half, runs a 2K by 2K optical engine at about 3,000 nits per watt, and was given a product roadmap beyond 80 degrees, with first prototypes at 50 degrees.[14] At CES 2026 Lumus introduced ZOE, described as its first geometric waveguide to exceed a 70 degree field of view at 1080p, alongside an updated 11 gram Z-30 rated above 8,000 nits per watt.[15]

The most prominent consumer device to use a geometric waveguide is the Meta Ray-Ban Display, the company's first display-equipped Ray-Ban glasses, which shipped in 2025 at 799 US dollars. Teardowns and reporting identify a geometric reflective waveguide designed by Lumus and mass-produced by SCHOTT, fed by an LCoS projector driving a 600 by 600 pixel image into a static 20 degree field of view.[16][17] One day before that launch, SCHOTT announced it was the first company able to manufacture geometric reflective waveguides in volume, which it described as the missing piece for high-efficiency consumer AR optics.[16]

A note on geometric optics versus geometric waveguides

Some early AR products are sometimes grouped with geometric waveguides but use a different optical class. Google Glass (2012) used a birdbath-style prism combiner with an LCoS microdisplay, not a guided-light waveguide.[5] North Inc.'s Focals (2018) used a holographic reflector that bounced a projected image off the inner surface of the lens, again not a TIR waveguide.[18]

High-index materials and manufacturing

Substrate refractive index sets the achievable field of view, so material choice is closely tied to display performance.

Waveguide substrate materials
Material Refractive index Notes
Standard optical glass 1.5 to 1.6 Low cost and mature, but limited field of view
High-index glass (for example SCHOTT RealView) 1.7 to 2.0 Better field of view, heavier
Specialized polymers 1.5 to 1.8 Lightweight and impact resistant, surface-quality limited
Silicon carbide (SiC) about 2.7 Highest practical index, single-layer wide field of view, rainbow suppression, but expensive and new

Nanoimprint lithography (NIL) is the dominant mass-production method for surface relief gratings: a master pattern, written by electron-beam lithography, is replicated into a UV-cured resist on the substrate, allowing many wafers per hour at high yield.[19] Related approaches include roll-to-roll imprinting on flexible substrates and jet-and-flash imprint lithography that dispenses picolitre resin drops. Geometric waveguides instead rely on mechanical mirror stacking, bonding, slicing and polishing, which is why SCHOTT's move to volume reflective-waveguide production in 2025 was treated as a milestone for that family.[3][16]

Silicon carbide waveguides

Meta used single-layer silicon carbide waveguides in its Orion AR prototype, revealed in 2024, to reach a 70 degree field of view. According to Meta, silicon carbide has a refractive index of about 2.7, the highest known for an optical application and roughly a 50 percent improvement over the 1.8 index of its earlier glass waveguides; the high index lets a single SiC plate carry the field of view that previously required three stacked glass plates that were too heavy and thick.[8] Meta also reports that silicon carbide suppresses the rainbow artifacts and ghost images seen in glass diffractive waveguides and conducts heat away from the optics. Meta built a dedicated fabrication facility in 2019 because no existing supplier could etch silicon carbide waveguides beyond laboratory scale, and its gratings use a "slant etch" technique with diagonally sloped grating lines.[8] Independent research has reported single-layer full-color SiC diffractive waveguides with a wide field of view and suppressed rainbow effect at lens weights of a few grams.[20]

Performance and artifacts

Optical efficiency

Waveguide displays are inefficient: only a small fraction of the light produced by the engine reaches the eye, with diffractive designs commonly cited in the low single-digit percent range and geometric designs higher.[1][9] Losses occur at in-coupling (from étendue and angle mismatch), during propagation (substrate absorption and scatter), at out-coupling (driven by the need for uniform extraction across the eye box), and from polarization handling. Low efficiency directly constrains outdoor brightness and battery life, which is one reason geometric waveguides, with their order-of-magnitude efficiency advantage, are attractive for all-day consumer glasses.[9][2]

Rainbow effect and eye glow

The most visible artifact in diffractive waveguides is the rainbow effect, colored streaks produced when the surface gratings diffract ambient light back to the eye. Mitigations include higher-index substrates that push the diffracted orders outside the viewing cone, multi-layer gratings, angular-selective coatings, and silicon carbide substrates that claim near rainbow-free operation.[20][8] A related issue is eye glow, light leaking outward from the front of the lens so that bystanders see the wearer's display; this is more pronounced in diffractive designs and is one of the social-acceptability arguments made for low-leakage geometric and crystal waveguides.[13][9] Both families also contend with the field of view versus eye box tradeoff and with full-color uniformity across the three primaries.[2]

Applications

Waveguide AR has its largest deployed base in enterprise and defense, where the cost and weight of the optics are more tolerable than in consumer eyewear.

  • Industrial and field service. Microsoft HoloLens and similar headsets are used for guided assembly, remote expert support, and hands-free documentation in manufacturing and logistics.[4]
  • Defense. The US Army's Integrated Visual Augmentation System (IVAS), a militarized HoloLens variant, was awarded to Microsoft in March 2021 under a production contract valued at up to 21.9 billion US dollars over ten years.[21]
  • Healthcare. Headsets such as the HoloLens 2 and Magic Leap devices are used for surgical navigation overlays, three-dimensional anatomy visualization, and hands-free access to patient data, and have been compared directly in clinical visualization studies.[22]
  • Consumer smart glasses. Lightweight monochrome devices such as the Vuzix Z100, which pairs a green microLED projector with a diffractive waveguide in a roughly 35 gram frame, and full-color products such as the Meta Ray-Ban Display target notifications, navigation, translation, and content capture.[23][17]

Industry and ecosystem

Selected waveguide display companies
Company Technology focus Notable products or role Status
Microsoft Diffractive SRG HoloLens 2; IVAS military variant Ended HoloLens 2 production October 2024; security and software support through 2027
Magic Leap Diffractive SRG Magic Leap 2 (70 degree diagonal) Shifted toward enterprise and optics licensing
Lumus Reflective / geometric Z-Lens, ZOE; Meta Ray-Ban Display optics Active, supplying consumer AR
DigiLens Holographic diffractive ARGO smart glasses; crystal waveguides Active, licensing manufacturing
Dispelix Diffractive SRG Waveguide supplier for defense and HUD partners Active
WaveOptics Diffractive Acquired by Snap; supplies Spectacles optics Subsidiary of Snap
Vuzix Diffractive SRG Z100, M-series enterprise glasses Active
SCHOTT Materials and manufacturing High-index glass; volume reflective waveguides Active supplier

Several acquisitions consolidated the supply chain. Snap Inc. acquired the British waveguide maker WaveOptics for more than 500 million US dollars in May 2021.[24] Apple acquired the holographic waveguide startup Akonia Holographics in 2018.[25] Google acquired the smart-glasses maker North Inc., whose Focals used a holographic reflector display, in June 2020.[18]

History

The physics predates AR by more than a century: Lord Rayleigh described electromagnetic wave propagation in waveguides in the 1890s, and the development of optical fiber in the 1960s established TIR light guiding in practice. Substrate-guided optical elements for near-eye displays were proposed by Y. Amitai in the late 1990s, and Lumus was founded in 2000 to commercialize the geometric approach.[1] Nokia developed and patented surface relief grating waveguides in the 2000s, technology later used by Microsoft and licensed to Vuzix.[4]

Milestones in waveguide AR displays
Year Event
2000 Lumus founded to develop geometric (reflective) waveguides
2000s Nokia develops and patents surface relief grating waveguides
2012 Google Glass ships (birdbath prism combiner, not a waveguide)
2016 Microsoft HoloLens ships, an early mass-market diffractive-waveguide AR headset
2018 Magic Leap One ships with a multi-layer diffractive waveguide; Apple acquires Akonia Holographics
2020 Google acquires North Inc.
2021 Snap Inc. acquires WaveOptics; US Army IVAS contract awarded to Microsoft
2022 Magic Leap 2 ships (70 degree diagonal); Lumus shows the 50 degree Maximus prototype
2023 Lumus announces the Z-Lens 2D architecture; DigiLens announces ARGO
2024 Meta reveals the Orion prototype with single-layer silicon carbide waveguides; Microsoft ends HoloLens 2 production
2025 Meta Ray-Ban Display ships with a Lumus geometric waveguide made by SCHOTT
2026 Lumus announces ZOE, a geometric waveguide exceeding 70 degrees

Current status and research directions

As of 2026, diffractive surface-relief waveguides remain the most widely manufactured AR combiner, but reflective geometric waveguides reached high-volume consumer production for the first time with the Meta Ray-Ban Display, and high-index materials are changing what each family can do. The main open problems are the same ones the technology has had throughout: low optical efficiency, fields of view well short of human vision, the field of view versus eye box tradeoff, rainbow and eye-glow artifacts in diffractive designs, the cost and yield of geometric designs, and total weight relative to ordinary glasses.[1][2] Active research directions include very high-index substrates such as silicon carbide for wider single-layer fields of view, achromatic metasurface elements intended to give uniform full color without multi-layer stacks, polarization volume gratings for higher coupling efficiency, and waveguide holography aimed at addressing the vergence-accommodation conflict with focal depth.[26][27]
