Sulon Q
More actions
| Sulon Q | |
|---|---|
| Basic Info | |
| VR/AR | Virtual Reality, Augmented Reality |
| Type | Head-mounted display |
| Subtype | Standalone VR |
| Developer | Sulon Technologies |
| Requires | No external PC or phone for the standalone design[1] |
| System | |
| Operating System | Microsoft Windows 10 (announced)[2] |
| CPU | AMD FX-8800P, advertised at up to 35 W[2] |
| GPU | Integrated Radeon R7 Graphics[2] |
| Storage | |
| Storage | 256 GB SSD (announced)[1] |
| Memory | 8 GB DDR3L (announced)[1] |
| Display | |
| Display | OLED (announced)[1] |
| Resolution | 2560x1440 pixels (announced display resolution)[1] |
| Audio | |
| Audio | GenAudio AstoundSound 3D spatial audio, built-in 3.5 mm jack and custom earbuds (announced)[2] |
| Connectivity | |
| Connectivity | Bluetooth 4.0, Wi-Fi 802.11ac, two USB 3.0 ports, Micro HDMI output (announced)[1] |
| Device | |
| Sensors | Magnetometer, Gyroscope, Accelerometer[2] |
| Input | Dual embedded noise-cancelling microphones; gestures and Windows 10-compatible peripherals (announced)[2] |

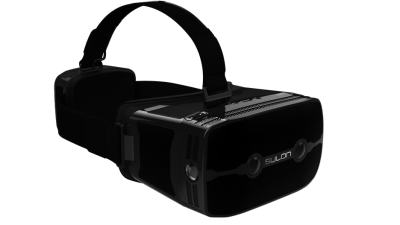

Sulon Q is a standalone virtual reality and augmented reality headset prototype developed by Sulon Technologies. Announced on 14 March 2016 at AMD's Capsaicin event during the Game Developers Conference, it combined an onboard Windows 10 computer with cameras for inside-out tracking and a video view of the surroundings. Its AR presentation used camera imagery rather than a transparent optical display.[1][3]
Introduction
Sulon marketed the Q as an all-in-one headset for VR, AR and spatial computing, using the phrase "wear and play" for operation without an external computer or tracking stations. AMD's April 2016 quarterly report identified Sulon as the company announcing the headset and the AMD FX-8800P as its processor.[4]
The Q followed Sulon's earlier Cortex project. Contemporary reporting described it as an updated design, while October demonstrations established that a working Q prototype existed. These demonstrations did not establish a retail release.[5][3]
Hardware and software
The Sulon Q design integrated the computer into the head-worn assembly. Its cameras supplied the surrounding scene to Sulon's proprietary spatial processing unit (SPU) for mapping and presentation on the display. This arrangement allowed the wearer to see a representation of the room and virtual content within the same headset.[3] The announced operating system was Microsoft Windows 10, with a "Project Dragon" application for spatial computing.[1][2]
The specifications below describe the 2016 announced design. They are not independent measurements of graphics performance, tracking accuracy or battery life.
Features
Wear and play
The onboard processor, storage and tracking system were intended to remove the need for a tether to a separate PC or a smartphone inserted into the headset. Sulon also proposed gesture input without external tracking equipment. The launch announcement described a wireless keyboard and mouse in the proposed package, together with support for other Windows 10-compatible controllers and joysticks.[6][2]
Virtual reality and augmented reality
Sulon's FAQ described the SPU as a set of technologies for environment mapping, camera-pose tracking, gesture recognition and reconstruction of the surroundings. It combined camera information with an inertial measurement unit containing an accelerometer, gyroscope and magnetometer. The intended reconstruction could be altered with virtual objects, lighting or simulated interactions.[2]
In the Magic Beans demonstration, the wearer initially saw the room around them. A beanstalk grew through its floor and ceiling before a giant lifted the wearer into a virtual scene. Douglas Soltys, who tried the prototype at a Toronto We Are Wearables event in October 2016, described looking through the opening in the ceiling into the virtual environment.[7] Darrell Etherington independently reported experiencing a working Magic Beans demonstration and described the room cameras feeding imagery into the headset's display.[3]
Windows 10 spatial interface
Sulon proposed placing ordinary desktop application windows at positions in the surrounding space, with gesture, keyboard and mouse input. The manufacturer called this arrangement "Digital Decorating" and said Windows applications would retain their conventional flat-window presentation within that space.[2] Etherington described the proposed desktop interface and its video demonstration separately from the Magic Beans experience he personally tried.[3]
Spatial redirection
The announced features included spatial redirection, intended to make virtual environments appear larger than the available physical room through perceptual techniques. Contemporary launch coverage presented this as a promise of the system. It did not report measured walking gains, minimum room dimensions or a controlled evaluation of Sulon's implementation.[5]
Processor and graphics
The announced AMD FX-8800P combined four CPU cores with Radeon R7 graphics, described by Sulon as eight GPU cores using Graphics Core Next architecture. Sulon identified shared memory through Heterogeneous System Architecture and advertised operation at up to 35 W. Its stated graphics API support included DirectX 12 and Vulkan.[2][6] These announced features do not quantify performance in a particular VR application.
Sulon said its initial AMD LiquidVR integration used Direct to Display and asynchronous compute. The FAQ described further LiquidVR features as future work, rather than claiming that the full suite was already implemented.[2]
Audio
The announced audio system used GenAudio's AstoundSound technology with a built-in 3.5 mm audio jack and custom Sulon Q earbuds. Sulon described spatial sound with room simulation and distance cues. Dual embedded noise-cancelling microphones were specified for voice communication.[2]
Lightweight
Soltys described the non-final October prototype as surprisingly light and reported Sulon's explanation that its weight was balanced around the head. This was a brief hands-on impression, not a published weight measurement or a study of prolonged wear.[7]
Development kit
Sulon's GDC FAQ described both consumer and developer uses. It promised an SDK with technical documentation, samples, open-source demonstrations and instructional videos, but used future tense for its launch. The same document described Magic Beans and an engine-disassembly design example as the applications shown for the sneak peek.[2]
Release date and cost
The March 2016 announcement forecast a launch in late spring, with pricing to be disclosed later.[1][2] On 7 October 2016, Etherington still reported no definite shipping timeframe, while Soltys described the tested hardware as non-final and said Sulon had not provided a release date or price.[3][7] The spring forecast therefore should not be read as a confirmed shipping date.
Technical specifications
| Component | Announced 2016 specification and qualification |
|---|---|
| CPU | AMD FX-8800P; up to 35 W advertised by Sulon.[2] |
| GPU | Integrated Radeon R7 Graphics; Graphics Core Next architecture.[2] |
| SPU | Proprietary Sulon environment mapping, tracking and reconstruction technologies.[2] |
| Memory | 8 GB DDR3L.[1] |
| Storage | 256 GB SSD.[1] |
| Display | OLED, 2560x1440 pixels for the display.[1] |
| Refresh rate | 90 Hz expected in the GDC FAQ. MobileSyrup's October list instead printed 70 Hz under "Expected Specifications"; neither is an independent measurement or evidence of a confirmed production change.[2][7] |
| Field of view | 110 degrees advertised; the cited specifications do not identify the measurement axis.[2] |
| Audio | GenAudio AstoundSound 3D spatial audio, built-in 3.5 mm jack and custom earbuds.[2] |
| Communication | Dual embedded noise-cancelling microphones.[2] |
| Sensors | Accelerometer, gyroscope and magnetometer, combined with camera-based spatial mapping and tracking.[2] |
| Software | Microsoft Windows 10, Project Dragon spatial interface and selected AMD LiquidVR technologies.[1][2] |
| Controllers and peripherals | Gesture input; announced wireless keyboard and mouse package; Windows 10-compatible controllers and joysticks.[2] |
| Wireless connections | Wi-Fi 802.11ac and Bluetooth 4.0 in the contemporary PC Watch specification list.[1] |
| Physical connections | Two USB 3.0 ports and Micro HDMI output, plus the audio jack.[1] |
| Development tools | SDK announced as forthcoming in the GDC FAQ, with documentation, samples and open-source demos.[2] |
