Oculus Santa Cruz
More actions
| Oculus Santa Cruz | |
|---|---|
| |
| Basic Info | |
| VR/AR | Virtual Reality |
| Type | HMD |
| Subtype | Standalone VR |
| Creator | Oculus VR |
| Tracking | |
| Positional Tracking | Inside-out tracking; six degrees of freedom[1] |
| Audio | |
| Camera | Four outward-facing cameras[2] |
| Connectivity | |
| Connectivity | 2016 prototype: USB and HDMI connections between the headset and its rear-mounted computer[3] |
| Device | |
| Input | Positionally tracked controllers demonstrated in 2017[4] |
Oculus Santa Cruz, also called Project Santa Cruz, was a series of standalone virtual reality headset prototypes developed by the Facebook-owned Oculus VR. The first prototype demonstrated inside-out positional tracking at Oculus Connect 3 in October 2016. An updated headset with tracked hand controllers followed in 2017; Oculus announced the resulting consumer product as Oculus Quest in September 2018.[5][4][6]
A video of the Santa Cruz headset was briefly shown at the Oculus Connect event. Facebook CEO Mark Zuckerberg introduced the project, and selected journalists subsequently tried it behind closed doors. The Oculus team attributed the prototype to progress in its inside-out tracking software.[2][7]
Hardware
Oculus Santa Cruz was a standalone virtual reality headset. Unlike Oculus Rift, the prototype did not need a cable to a separate personal computer. Its on-headset computer rendered the virtual environment locally; this was not a wireless video connection to a gaming PC.[3]
2016 prototype

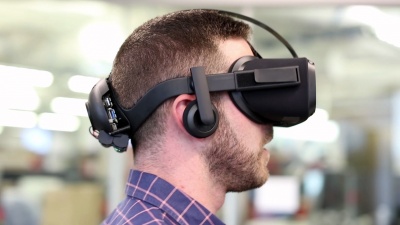

The original headset resembled a modified Rift. A small computer and battery sat at the rear of the head strap, while four camera lenses protruded from the corners of its front faceplate.[2] Tuan Nguyen's contemporary account identified USB and HDMI cables running from the headset to that rear computer, with a battery pack below it. These were connections within the worn assembly.[3] Seth Colaner reported three USB ports, at least two of them USB 3.0, and an HDMI port on the rear computer board; Oculus did not provide its full specifications.[8]
The headset tracked both orientation and position, allowing the wearer to walk, crouch and lean in a virtual environment. The 2016 demonstration focused on head movement and did not provide interactive virtual hands. Oculus declined to give Ian Hamilton the display resolution or a confirmed frame rate.[1] Unlike the three-degree-of-freedom Gear VR, Santa Cruz also tracked changes in the wearer's position.[8]
2017 Prototype II
Ben Lang reported that the 2017 headset bore the marking "Santa Cruz Prototype II". Its computer and battery were integrated into the front enclosure. He observed new lenses, a lens-spacing slider, volume buttons and a head strap with a flexible rear portion.[9]
Lang observed built-in speakers and a 3.5 mm audio jack on each side; Oculus said the audio design was unfinished.[9] The controllers resembled Oculus Touch, with their tracking rings above the hands and a touchpad replacing the earlier Rift controller's stick and face buttons. In March 2018, Oculus showed a further controller revision with sticks and buttons after developers requested inputs closer to Rift's.[10][11]
Inside-Out Tracking
Instead of Rift's outside-in tracking, Santa Cruz used cameras on the headset to track its movement through the room. The 2016 demonstration combined that tracking with self-contained computing and power, allowing room-scale movement without external rendering or tracking hardware.[1]
In the 2017 version, the same four wide-angle cameras tracked both the headset and its controllers. The upward-facing controller rings made their infrared markers visible to the headset cameras.[9] This controller tracking had limits: in Hamilton's demonstration, deliberately turning his head right while extending his hand left caused the virtual hand to return abruptly to its expected position when he looked back.[10]
Lang noticed slight jitter near static objects and hand-position shifts between camera views in 2017. His demonstration room had no mirrors or windows; the report was not a tracking benchmark.[9]
Software
The 2016 prototype demonstrated tracking software on a self-contained headset, rather than a published consumer software platform. Hamilton reported that John Carmack credited Oculus' computer-vision teams with the tracking progress.[1]
The 2017 demonstrations included versions of Dead & Buried and Boundless, in which the user fed a small creature. Nate Mitchell told Hamilton that the demonstrated Dead & Buried graphics fell between its mobile and PC versions, closer to mobile. These demonstrations did not establish that unmodified Rift games would run on Santa Cruz.[10]
At GDC 2018, Oculus discussed a controller with joysticks and two face buttons, while continuing to describe developer-kit plans separately from consumer sale.[12] For the later Quest announcement, Oculus described support for its existing development tools and Unity/Unreal integrations.[6]
The Oculus Santa Cruz Experience
The 2016 demonstration let journalists walk through a virtual scene and then a cartoon town. A blue grid appeared as the wearer approached the edge of the physical demonstration space, providing a visible boundary comparable to the warning grid used by HTC Vive.[2][3] Hamilton also reported walking, jumping and crouching; he encountered one brief tracking interruption near a corner while turning quickly.[1] Colaner's cartoon-world demonstration included a yard with shrubs and flowers; his virtual hands, arms and legs were not shown.[8]
Hamilton's 2017 Dead & Buried session involved turning in full circles while aiming at enemies. His reports describe particular demonstrations, without measuring tracking accuracy or long-term comfort.[10]
Cost
Oculus had not announced a consumer price for Santa Cruz at its 2016 demonstration.[2] On 26 September 2018, it announced the consumer headset as Oculus Quest, starting at US$399. That was the announced Quest price, rather than a retail price for either earlier prototype.[6]
Release Date
The initial Santa Cruz prototype was revealed on 6 October 2016.[5] Oculus' 2017 conference recap said that Santa Cruz would launch for developers the following year; this was an announced development schedule.[4] At Oculus Connect 5 in September 2018, Oculus introduced Quest and forecast a spring 2019 launch.[6]
Relationship to Oculus Quest
The Quest announcement explicitly described Santa Cruz as a prototype on the path to the new product. It also introduced the name Oculus Insight for Quest's inside-out headset and controller tracking.[6] A later Facebook AI account explained that Quest and Rift S used visual-inertial SLAM for headset tracking and infrared LED detection for controller tracking. That account concerns those later products; its performance claims are not specifications for the earlier Santa Cruz demonstrations.[13]
References
- ↑ 1.0 1.1 1.2 1.3 1.4 Ian Hamilton (2016-10-06). "Hands-on With 'Santa Cruz' Inside Out Position Tracking Oculus Prototype". UploadVR. https://www.uploadvr.com/hands-santa-cruz-inside-out/. Retrieved 2026-10-15.
- ↑ 2.0 2.1 2.2 2.3 2.4 Ben Lang (2016-10-06). "Hands-on: Oculus’ Wireless ‘Santa Cruz’ Prototype Makes Standalone Room-scale Tracking a Reality". Road to VR. https://roadtovr.com/hands-on-oculus-wireless-santa-cruz-prototype-makes-standalone-room-scale-tracking-a-reality/. Retrieved 2026-10-15.
- ↑ 3.0 3.1 3.2 3.3 Tuan Nguyen (2016-10-07). "This is what Oculus' new wireless prototype Rift is like". PC Gamer. https://www.pcgamer.com/this-is-what-oculus-new-wireless-prototype-rift-is-like/. Retrieved 2026-10-15.
- ↑ 4.0 4.1 4.2 Facebook (2017-10-13). "VR開発者やクリエイター向けカンファレンス「Oculus Connect 4」が開催 ―フジテレビが旅行体験VRアプリ「HAKONE WEB TRIP」を発表―". Facebook Newsroom Japan. https://about.fb.com/ja/news/2017/10/oculus-connect-4/. Retrieved 2026-10-15.
- ↑ 5.0 5.1 Facebook (2016-10-06). "Oculus Reveals Touch Launch Details and Unveils Santa Cruz Prototype at Oculus Connect 3". Facebook Newsroom. https://about.fb.com/news/2016/10/oculus-reveals-touch-launch-details-and-unveils-santa-cruz-prototype-at-oculus-connect-3/. Retrieved 2026-10-15.
- ↑ 6.0 6.1 6.2 6.3 6.4 Oculus VR (2018-09-26). "Introducing Oculus Quest, Our First 6DOF All-in-One VR System". Oculus Developer Blog. https://developers.meta.com/vr/blog/introducing-oculus-quest-our-first-6dof-all-in-one-vr-system/. Retrieved 2026-10-15.
- ↑ Oculus VR (2016-10-05). "OC3 Reveals: Touch Launch, Santa Cruz Prototype, Min Spec, 400+ Mobile VR Apps, and More". Oculus Blog. https://www.oculus.com/blog/oc3-reveals/. Retrieved 2026-10-15.
- ↑ 8.0 8.1 8.2 Seth Colaner (2016-10-07). "Oculus Rift, Untethered: Project Santa Cruz, Hands On". Tom's Hardware. https://www.tomshardware.com/news/oculus-rift-untethered-project-santa-cruz,32830.html. Retrieved 2026-10-15.
- ↑ 9.0 9.1 9.2 9.3 Ben Lang (2017-10-12). "Hands-on: Oculus Santa Cruz Prototype II & Controllers". Road to VR. https://roadtovr.com/hands-on-oculus-santa-cruz-ii-prototype-controllers-2017-oculus-connect-4/. Retrieved 2026-10-15.
- ↑ 10.0 10.1 10.2 10.3 Ian Hamilton (2017-10-11). "OC4: Hands-On With Santa Cruz And Full Freedom Of Movement Controllers". UploadVR. https://www.uploadvr.com/hands-on-santa-cruz-full-freedom-controllers/. Retrieved 2026-10-15.
- ↑ Ben Lang (2018-03-23). "Oculus to Scrap Trackpads on Santa Cruz Controllers in Favor of Buttons & Sticks". Road to VR. https://roadtovr.com/oculus-to-scrap-trackpads-on-santa-cruz-controllers-in-favor-of-buttons-sticks/. Retrieved 2026-10-15.
- ↑ Jamie Feltham (2018-03-21). "GDC 2018: Oculus Santa Cruz's New Controllers Are Much Closer To Touch". UploadVR. https://www.uploadvr.com/gdc-2018-oculus-santa-cruz-like-games-console-new-controllers-teased/. Retrieved 2026-10-15.
- ↑ Joel Hesch; Anna Kozminski; Oskar Linde (2019-08-22). "Powered by AI: Oculus Insight". Facebook AI. https://ai.meta.com/blog/powered-by-ai-oculus-insight/. Retrieved 2026-10-15.
