AMBEO VR Mic

vrarwiki.com · VR & AR Wiki
AMBEO VR Mic
Basic Info
VR/AR VR
Type Microphone
Developer Sennheiser
Manufacturer Sennheiser
Announcement Date Prototype shown at CES 2016 (January 2016); presented as the AMBEO VR Mic at IBC 2016 (September 2016)
Release Date November 2016
Price US$1,700 (Road to VR, January 2017); US$1,649.95 (April 2017)
Website https://www.sennheiser.com/en-us/catalog/products/microphones/ambeo-vr-mic/ambeo-vr-mic-507195
Requires Four-channel preamplifier or recorder with 48 V phantom power; software that handles Ambisonics B-format
Audio
Audio First-order Ambisonics (four-channel A-format capture, converted to B-format in software)
Microphone Four matched KE 14 cardioid condenser capsules in a tetrahedral arrangement
Connectivity
Connectivity Wired, DIN12M socket with adapter cable to 4x XLR-3M
Ports DIN12M
Power 4 x phantom powering (P48) as per IEC 61938 (48 ± 4 V), 3.5 mA each
Device
Dimensions 215 x 49/25 mm (L x D)
Weight 400 g

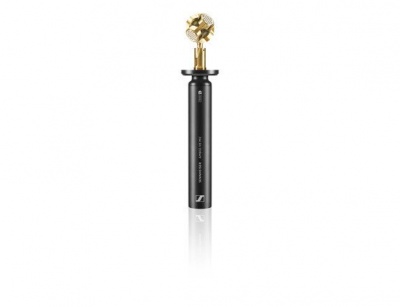

The AMBEO VR Mic is a first-order Ambisonics microphone made by the German audio company Sennheiser for recording spatial sound to accompany virtual reality and 360-degree video. It has four matched KE 14 cardioid condenser capsules in a tetrahedral arrangement, and Sennheiser's AMBEO A-B format converter software turns their four raw signals into Ambisonics B-format, a four-channel description of the sound field around a single point.[1][2]

Sennheiser showed a prototype of the microphone at CES 2016, formally presented it as the AMBEO VR Mic at the IBC trade show in Amsterdam in September 2016, and put it on sale in November 2016.[3][4][5] Road to VR gave its price as US$1,700 in January 2017, when the microphone was demonstrated at CES 2017 in Las Vegas.[5] As of October 2026 Sennheiser still lists the microphone (article number 507195) in its catalog and publishes current documentation for it.[1][2]

Reviewed 21 October 2026. Specifications, delivery contents, plug-in controls and handling advice checked against Sennheiser's catalog, specification page and February 2026 manual; launch dates, prices, quotes, review, patent, dearVR and 2024 paper claims checked against the cited sources. About review dates.

Announcement and release

Sennheiser presented its AMBEO 3D audio program at CES 2016 in January 2016. Its booth had a zone for a virtual reality microphone that, according to audioXpress, was designed together with VR content producers, was planned for launch in the third quarter of 2016, and was to be bundled with a post-production plug-in in 2017.[3] The VR production company Visualise wrote at the time that it had been given "the first working prototype of the VR mic" and had used it on 360-degree video shoots, including a piano recital by Grace Oh recorded at St Botolph's Aldgate church, a sample of which was shown at CES.[6] Henrik Oppermann, Visualise's head of sound, said the company was "looking forward to be part of establishing an audio-post workflow for VR."[6]

The finished product was presented as the AMBEO VR Mic at IBC 2016 in Amsterdam, after appearances at CES 2016 and IFA 2016 in Berlin.[7][4] Sennheiser said the microphone had been tested by participants in an international creators' program for VR audio and video producers, and announced commercial availability for November 2016.[7] Kai Lange, Sennheiser's product manager for broadcast and media, said the microphone "has been designed specifically for VR/AR purposes" and that "the entire development process was accompanied by intensive field testing with VR content producers".[7]

Road to VR wrote in January 2017 that the microphone had become widely available in November 2016.[5] NewsShooter, covering the NAB Show in April 2017, gave the United States price as US$1,649.95 and called it "steep".[8] Definition magazine's March 2017 review listed the UK price as £1,440 including VAT.[9]

Ambisonics and the tetrahedral design

Sennheiser describes Ambisonics as a technology for describing and playing back a sound field at a single point in space, so that recorded sound can be reproduced from all directions in three dimensions. Playback over loudspeakers or headphones needs software that can decode Ambisonics B-format.[2] A four-capsule tetrahedral array of this kind was described in a patent by Peter Craven and Michael Gerzon (UK priority 1974, US patent granted 1977): four directional capsules (the description names cardioid or hypercardioid examples) sit on the faces of a regular tetrahedron, and a matrix combines their signals into one zero-order output and three first-order outputs.[10]

In the AMBEO VR Mic the four capsule signals form the A-format: Front Left Up (FLU), Front Right Down (FRD), Back Left Down (BLD) and Back Right Up (BRU). Sennheiser's specification gives the B-format signals as sums and differences of these four (see the table below).[11] In the B-format, W is the sum of all four capsules, and X, Y and Z are virtual bidirectional patterns for front/back, left/right and up/down.[8] Ambisonics microphones range from first-order designs such as the AMBEO VR Mic to higher-order arrays such as the MH Acoustics Eigenmike, as Lewandowski and Augustyniak note in a 2024 paper.[12] See Higher-order Ambisonics for the higher-order formats.

Design and hardware

The microphone is a handheld, fully balanced design powered by 48 V phantom power on each of its four channels.[7] A DIN12M socket at the base takes an adapter cable that splits the signal to four XLR-3M connectors, color-coded by capsule: channel 1 (FLU) yellow, channel 2 (FRD) red, channel 3 (BLD) blue and channel 4 (BRU) green.[2] The sound inlet direction is marked on the body with the Sennheiser logo and the label "FRONT UP".[2]

Sennheiser's manual recommends mounting the microphone upright with the basket pointing up, which it says gives the best results because it minimizes reflections from the microphone and the floor. The basket can also point down (upside down) or forward (endfire). When it is used with a camera, the manual advises mounting the microphone directly above or below the camera, ideally at a distance of 50 cm, with the microphone's front aligned with the camera's recording direction.[2]

Because the Ambisonics conversion depends on matched channels, the four capsules must be recorded on four separate tracks through identical preamplifiers set to the same gain. Sennheiser warns that "even slight deviations can already influence the spatial image" and suggests calibrating with a phantom-powered test tone generator, naming the Superlux Pink Stick and the Canford Phantone Tone Generator. Any gain change during a recording has to be applied equally to all four channels, and Sennheiser recommends field recorders whose digitally controlled gain can be linked across channels.[2]

Specifications

Values below are Sennheiser's published specifications unless stated otherwise.

Part Spec
Dimensions (L x D) 215 x 49/25 mm[11]
Weight 400 g (Road to VR)[5]
Transducer principle Pre-polarized condenser microphone[11]
Capsules Four matched KE 14 cardioid capsules, tetrahedral arrangement[1]
Pick-up pattern 4x cardioid in Ambisonics A-format arrangement
FLU - Front Left Up
FRD - Front Right Down
BLD - Back Left Down
BRU - Back Right Up[11]
Output in B-format W = FLU + FRD + BLD + BRU
X = FLU + FRD - BLD - BRU
Y = FLU - FRD + BLD - BRU
Z = FLU - FRD - BLD + BRU[11]
Frequency response 20 Hz to 20 kHz[11]
Matrix reference Center of capsule holder[11]
Sensitivity 31 mV/Pa (-30 dBV) at 1 kHz[11]
Nominal impedance Approx. 200 ohms[11]
Min. load impedance 1000 ohms[11]
Equivalent noise level 18 dB(A) A-weighted
27 dB CCIR-weighted[11]
Max. sound pressure level 130 dB(A) at 1 kHz (THD = 1%)[11]
Power supply 4x phantom power (P48) as per IEC 61938 (48 V ± 4 V), 3.5 mA respectively[11]
Microphone connector DIN12M; supplied adapter cable to 4x XLR-3M[11]
XLR pin assignment Pin 1 (GND), Pin 2 (+), Pin 3 (-)[11]
Operating temperature -10 °C to 55 °C (14 °F to 131 °F)[11]
Storage temperature -20 °C to 70 °C (-4 °F to 158 °F)[11]
Relative humidity Max. 90% at 40 °C (104 °F)[11]
Warranty 24 months[2]

In the box

At launch, the microphone came with a split cable ending in four color-coded and labelled XLR connectors, a Rycote suspension mount and a foam windshield.[7] Sennheiser's current catalog entry lists a balanced split cable with four 3-pin XLRs, a 1.5 m extension cable (DIN12F to DIN12M), the Rycote suspension mount, the foam windshield and the A-B encoder software.[1] The February 2026 manual lists the microphone, shock mount, windshield and DIN12 to 4x XLR-3M adapter cable.[2]

Software and features

AMBEO A-B format converter

The microphone itself only outputs A-format. Sennheiser's AMBEO A-B format converter is a plug-in for studio software that converts the four A-format channels to B-format, and is downloaded from Sennheiser's website.[2] At launch Sennheiser described the encoder as available in VST, AAX and AU plug-in formats for any digital audio workstation and as a standalone application for Mac or Windows.[7][4] Its current catalog entry lists VST for Mac OS X and Windows and AAX for Mac OS X, with downloads up to version 1.2.3.[1] The manual gives compatibility as Mac OS X from version 10.10 and Windows from version 8.1.[2]

The plug-in has the following controls, as described in the February 2026 manual:[2]

Control Function Default
Ambisonics Correction Filter Optimizes the recording for the 360-degree sound image On
Low Cut Filter Cuts low frequencies that may carry interfering signals Off
Microphone Rotation Corrects the horizontal orientation, for example to align the sound pickup with the video 0 degrees
Position Matches the actual mounting: upright, upside down or endfire Upright
Output Format CLASSIC FuMa (channel order W-X-Y-Z) or ambiX (channel order W-Y-Z-X) CLASSIC FuMa

The ambiX option matters for online 360-degree video: YouTube's spatial audio for 360-degree and VR videos uses first-order Ambisonics in the ambiX format, with ACN channel ordering and SN3D normalization.[13]

dearVR AMBI MICRO

At NAMM in January 2019 Sennheiser announced dearVR AMBI MICRO, a DAW plug-in developed by its partner Dear Reality "in cooperation with Sennheiser's AMBEO team". It includes the AMBEO A-to-B converter and AMBEO Ambisonics-to-binaural conversion, accepts "AMBEO VR Mic or B-format Ambisonics tracks" up to third order, and renders A-format or B-format to binaural audio for headphones, which can be monitored with head tracking through a VR headset; connected to dearVR SPATIAL CONNECT, it lets engineers mix and listen with head tracking in VR.[14] Production Expert's Tom Lowe compared the two converters in 2019 and found the A-B conversions of the Sennheiser plug-in and AMBI MICRO "so similar in my tests I couldn't hear any difference"; a null test left only "a very faint signal mainly at the top end".[15] In July 2019 Sennheiser took a majority stake in Dear Reality, which was to continue operating as a separate company based in Düsseldorf.[16]

Reception

In Definition magazine's March 2017 review, Adam Garstone recorded with a Sound Devices 788T field recorder, encoded the material to B-format with Sennheiser's free plug-in and also tested Harpex software for decoding. He wrote that "the AMBEO VR is very solidly made" and that "The entire unit oozes quality". He noted that the published sensitivity and noise figures are weaker than those of typical field recording microphones, but said "we didn't notice any problems" in practice, and found the 20 Hz to 20 kHz frequency response useful when extracting a low-frequency effects channel. His main practical criticism was that the 788T could not monitor the raw A-format channels properly, offering only a basic B-format-to-stereo matrix. He also noted a general limitation of point-source recordings: played back through several loudspeakers, they can show phase problems when the listener moves. He called it "an outstanding microphone".[9] NewsShooter described the April 2017 price of US$1,649.95 as "steep".[8]

Use in research

Lewandowski and Augustyniak of the Warsaw University of Technology used the AMBEO VR Mic as the reference microphone in a 2024 study of low-cost first-order Ambisonics microphones built with MEMS and electret capsules. They measured all three microphones in an anechoic chamber with 240 measurement points around each microphone, recorded street, fountain, tunnel and hall scenes with each, and ran listening tests with 42 participants in which the AMBEO recordings served as the reference. They converted the anechoic measurements from A-format to B-format in the Reaper workstation with the SPARTA Array2sh plug-in, and reported that the AMBEO and their electret design still performed satisfactorily in directivity, while the MEMS design came closest to the ideal B-format patterns.[12]
