DPVR M2 Pro
| DPVR M2 Pro | |
|---|---|
| Basic Info | |
| VR/AR | Virtual Reality |
| Type | Head-mounted display |
| Subtype | Standalone VR |
| Platform | Android |
| Creator | DPVR (DeePoon) |
| Website | https://www.dpvr.com |
| System | |
| CPU | Samsung Exynos 7420 |
| GPU | Mali-T760 MP8 |
| Storage | |
| Display | |
| Display | LCD |
| Resolution | 2650 x 1440 (1325 x 1440 per eye) |
| Image | |
| Optics | |
| Tracking | |
| Tracking | 3DoF |
| Audio | |
| Connectivity | |
| Connectivity | Wi-Fi, Bluetooth |
| Device | |
| Sensors | Accelerometer, gyroscope |
| Input | Bluetooth gamepad (optional) |
Property "Creator" (as page type) with input value "DPVR]] (DeePoon)" contains invalid characters or is incomplete and therefore can cause unexpected results during a query or annotation process.

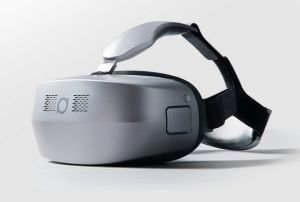

The DPVR M2 Pro was a standalone virtual reality head-mounted display developed by DPVR (formerly DeePoon), a Chinese VR technology company. Released around 2016-2017, the M2 Pro was one of the early standalone VR headsets, featuring a Samsung Exynos 7420 processor and 2K resolution display. DPVR received an IF World Design Award in 2019 for having one of the best wireless VR headset designs in the world.[1]
History and Development
DPVR Company
DPVR (originally known as DeePoon) is a Chinese virtual reality company that launched the world's first VR All-In-One headset, the M2. The M2 Pro represented an enhanced version of this pioneering standalone device.[2]
Design Recognition
DPVR was recognized with an IF World Design Award in 2019 for excellence in wireless VR headset design.
Design and Hardware
Processor
The M2 Pro was powered by:
- SoC: Samsung Exynos 7420
- GPU: Mali-T760 MP8
- RAM: 2 GB SDRAM
The Exynos 7420 was a flagship mobile processor of its era, providing solid performance for standalone VR applications.
Display System
- Resolution: 2650 x 1440 (1325 x 1440 per eye)
- Display Type: LCD
- Refresh Rate: 72 Hz
Field of View
The headset offered a 96-degree diagonal field of view.
Tracking and Sensors
3DoF Tracking
The M2 Pro utilized 3 degrees of freedom tracking, detecting head rotation but not positional movement in space.
Sensors
Multiple sensors and cameras ensured low latency tracking for 360-degree head movements:
- Accelerometer for measuring linear acceleration
- Gyroscope for rotational tracking
Audio
Audio Output
The device featured a standard 3.5mm mini jack socket, compatible with most headphones. This design choice provided flexibility in audio preferences.
Connectivity
- Wireless: Wi-Fi, Bluetooth
- Audio: 3.5mm headphone jack
Input Devices
The M2 Pro supported:
- Handheld wireless controllers for gesture control and movement tracking
- Bluetooth gamepad (available as optional accessory)
Package Contents
The M2 Pro package included:
- VR Headset
- Detachable head belt
- Eyeglass spacer
- Charger and charging cable
- Micro USB cable
- Headphones
- Cleaning cloth
- Getting started guide
- Warranty information
Specifications
| Specification | Details |
|---|---|
| Processor | Samsung Exynos 7420 |
| GPU | Mali-T760 MP8 |
| RAM | 2 GB SDRAM |
| Display Type | LCD |
| Resolution | 2650 x 1440 (1325 x 1440 per eye) |
| Refresh Rate | 72 Hz |
| Field of View | 96° |
| Tracking | 3DoF |
| Audio | 3.5mm jack |
| Connectivity | Wi-Fi, Bluetooth |
| Form Factor | Standalone |
