HP Reverb G1
The HP Reverb G1 (often referred to simply as HP Reverb) is a VR headset developed and manufactured by HP Inc.. [1] Announced in March 2019 and released shortly after in May 2019, it represented HP's second major entry into the VR market, succeeding the HP VR1000. [1][2][3] It was primarily known for its high resolution LCD panels, aiming to reduce the screen-door effect common in headsets of its time. [2][4] The Reverb G1 operates on the Windows Mixed Reality platform but is also compatible with SteamVR. [1][2] It has since been discontinued and succeeded by the HP Reverb G2. [1][5][6]
| HP Reverb G1 | |
|---|---|
| |
| Basic Info | |
| VR/AR | Virtual Reality |
| Type | Head-mounted display |
| Subtype | Discrete HMD |
| Platform | Windows Mixed Reality, SteamVR |
| Creator | HP Inc. |
| Developer | HP Inc., Microsoft, Valve |
| Manufacturer | HP Inc. |
| Announcement Date | March 19, 2019 |
| Release Date | May 1, 2019 |
| Price | $599 (Consumer Edition with controllers), $649 (Professional Edition with controllers) |
| Website | https://support.hp.com/th-en/product/details/hp-reverb-g1-virtual-reality-headset/28341578 |
| Versions | Consumer Edition, Professional Edition |
| Requires | VR-Ready PC |
| Predecessor | HP VR1000 |
| Successor | HP Reverb G2 |
| System | |
| Operating System | Windows 10 |
| Storage | |
| Display | |
| Display | 2 x LCD |
| Subpixel Layout | RGB stripe |
| Resolution | 2160 x 2160 per eye (4320 x 2160 total) |
| Refresh Rate | 90 Hz |
| Image | |
| Field of View | Approx. 114° diagonal (Visible FoV: 95° H / 90° V ) |
| Optics | |
| Optics | Fresnel-Aspherical |
| Ocularity | Binocular |
| IPD Range | Software adjustment, 63mm fixed physical lenses (+/- 8mm software adjustment, approx. 55-71mm range) |
| Passthrough | Yes, via tracking cameras ("Mixed Reality Flashlight" mode) |
| Tracking | |
| Tracking | Inside-out tracking, 6DoF |
| Base Stations | None required |
| Eye Tracking | No |
| Hand Tracking | No |
| Rotational Tracking | Yes |
| Positional Tracking | Yes |
| Play Space | Up to 5m x 5m supported |
| Audio | |
| Audio | Integrated off-ear spatial audio headphones (removable) |
| Microphone | Yes, dual integrated microphones |
| 3.5mm Audio Jack | Yes |
| Camera | 2 front-facing cameras for tracking and passthrough |
| Connectivity | |
| Connectivity | Bluetooth (built into headset for controllers) |
| Ports | Headset connector (proprietary), 3.5mm audio jack |
| Wired Video | DisplayPort 1.3, USB 3.0 |
| Wireless Video | No |
| Bluetooth | Yes (for controllers) |
| Power | Via PC connection and cable |
| Device | |
| Dimensions | 55 x 177 x 84 mm (without headstrap) / 5.5 x 17.7 x 8.4 cm |
| Weight | 433 g (without headstrap), 498 g (with headstrap) / Approx. 500g |
| Material | Plastic, fabric front, foam facial interface |
| Headstrap | Elastic padded plastic straps with rear padded ring |
| Color | Gray/Black |
| Sensors | Gyroscope, Accelerometer, Magnetometer |
| Input | Windows Mixed Reality Motion Controllers |
| Cable Length | 4m (standard), 0.6m (for Z VR Backpack PC), quick-release connector / 3.5m (11.5 ft) |

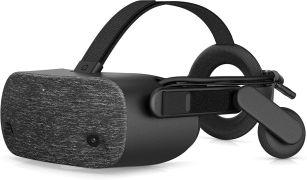

Design and Comfort
The HP Reverb G1 features a design reminiscent of the original Oculus Rift and Google Daydream View, with a blend of plastic and fabric materials on the exterior. [4] It utilizes a three-point harness system with Velcro straps on the sides and top, connecting to a padded ring that rests against the back of the user's head, similar to the Oculus Rift series. [4][2] The headset itself is relatively lightweight, weighing approximately 498 grams with the headstrap (433g without). [1] This light weight generally contributes to comfort during use, reducing neck strain. [4]
The face mask uses foam padding covered in fabric (Consumer Edition) or an easier-to-clean pleather-style material (Professional Edition) and is removable for cleaning. [4][7] It provides a good seal around the nose to block external light. [4] However, some users found the headset could become warm and sweaty during active use, despite some venting. [4] Compatibility with glasses can be challenging; larger frames may struggle to fit, and the headset might pull glasses off when removed. [4]
A thick, somewhat heavy cable connects the headset to the PC via DisplayPort 1.3 and USB 3.0. [4][2] This cable was noted by some reviewers as being bulky and hard to ignore during use. [4] It features a quick-release connector near the headset. [8][9] The Professional Edition included both a standard 4-meter cable and a shorter 0.6-meter cable designed for use with HP's Z VR Backpack PC. [8][9]
Display and Optics
The standout feature of the Reverb G1 is its display. It utilizes two 2.89-inch LCD panels, each with a resolution of 2160 x 2160 pixels, providing a combined resolution of 4320 x 2160. [1][2][10] This was significantly higher than most contemporary consumer VR headsets like the HTC Vive Pro or Oculus Quest. [2] The high resolution, combined with an RGB stripe subpixel layout, drastically reduces the Screen-door effect, resulting in a very sharp and clear image. [2][4][11] The displays operate at a refresh rate of 90 Hz. [1][2]
The headset employs Fresnel lenses and offers a field of view (FoV) of approximately 114 degrees diagonally. [4][9][10] The visible horizontal FoV is around 95 degrees, and the vertical FoV is about 90 degrees. [1] While the visuals are generally praised for sharpness and color, some reviewers noted occasional issues with the right display flickering or struggling with brightness consistency, potentially related to power delivery. [4]
The Reverb G1 lacks a hardware IPD adjustment mechanism. [4][2] The lenses are physically fixed at a spacing suitable for an IPD of around 63mm. [4][9] Software-based IPD adjustment is available, allowing compensation of +/- 8mm, accommodating an approximate range of 55mm to 71mm. [4][9][7]
Tracking and Passthrough
The Reverb G1 uses the Windows Mixed Reality Inside-out tracking system. [4][2] It features two front-facing cameras mounted on the headset visor to track the headset's position and orientation in 6 degrees of freedom (6DoF), as well as the included motion controllers. [1][4][2] This system eliminates the need for external sensors or base stations, simplifying setup. [1][4]
Reviewers found the rotational tracking to be smooth and accurate. [4] However, positional tracking (moving side-to-side or around the play space) and controller tracking were sometimes described as rougher or exhibiting noticeable jitter compared to systems with external tracking or more cameras (like the Oculus Rift S or subsequent HP Reverb G2). [4][2] Tracking could be lost if controllers were held outside the cameras' view, such as behind the back or sometimes during fast throwing motions. [4]
The front cameras also enable a video passthrough feature called "Mixed Reality Flashlight," allowing users to see their real-world surroundings in black and white without removing the headset. [4][12] The quality was described as low-resolution. [4]
Controllers
The HP Reverb G1 shipped with the standard first-generation WMR motion controllers. [1][2][5] These controllers offer 6DoF tracking via visible LED rings tracked by the headset's cameras. [4] Each controller features a thumbstick, a clickable trackpad, a menu button, a Windows button, an analog trigger, and a grip button. [2][7] They are powered by two AA batteries each. [4][9] Unlike some earlier WMR headsets that required pairing controllers to a PC's Bluetooth, the Reverb G1 features built-in Bluetooth in the headset for a direct connection. [8][9][7][13]
The ergonomics of these controllers were often criticized as being less comfortable than competitors like the Oculus Touch controllers, featuring a somewhat rectangular grip. [4][2] Some users also reported issues with the battery covers coming loose during active gameplay, and the haptic feedback (vibration) was described as weak or "anemic". [2][14] These controllers are not compatible with the successor HP Reverb G2 headset. [15]
Audio
The Reverb G1 includes integrated off-ear headphones, similar in style to those on the original Oculus Rift. [4][2][7] These headphones deliver spatial audio and can be adjusted, flipped up, or removed entirely if users prefer to use their own headphones via the headset's 3.5mm audio jack. [4][9][7] The headset also features dual integrated microphones for voice input and communication. [4][12]
Software and Compatibility
As a Windows Mixed Reality (WMR) headset, the Reverb G1 integrates directly with Windows 10. [2] The primary interface is the WMR Portal and the Cliff House, a customizable virtual environment where users can launch apps and access Windows functions. [2][16] The Microsoft Store provides native WMR applications, though its library was considered limited compared to other platforms at the time. [2]
Crucially, the Reverb G1 is also compatible with SteamVR via the "Windows Mixed Reality for SteamVR" software bridge. [2][11] This allows access to a much larger library of VR games and applications available on Steam. [4][11] Setting up and running SteamVR content sometimes required extra steps or troubleshooting compared to native WMR apps. [4][2]
Microsoft has announced the deprecation of Windows Mixed Reality, with support ending for consumers on November 1, 2026. After this date, the WMR Portal software and SteamVR driver may become unavailable, potentially rendering WMR headsets like the Reverb G1 unusable, especially on future Windows updates (like Windows 11 24H2 and later) that remove the platform. [17][18][6][19]
System Requirements
Due to its high resolution, the Reverb G1 required a relatively powerful PC compared to lower-resolution headsets of the time. Recommended specifications included:
- GPU: NVIDIA GeForce GTX 1080, NVIDIA Quadro P5200, AMD Radeon Pro WX 8200, or better (DirectX 12 capable). [2][8][10] Some sources list RX 5700 as an alternative AMD recommendation. [20]
- CPU: Intel Core i7, Intel Xeon E3-1240 v5, or better. [2][8][10] Some sources list Core i5 or Ryzen 5 as alternatives. [20]
- RAM: 16GB RAM or more. [2][8][10] Some sources list 8GB as minimum/recommended. [20]
- Video Output: DisplayPort 1.3. [2][8][20]
- USB Ports: 1x USB 3.0. [2][8][20]
- Operating System: Windows 10 (October 2018 update or later). [8][2][20]
Reception
The HP Reverb G1 received mixed reviews. Its high-resolution display was widely praised as its strongest feature, offering excellent visual clarity and significantly reducing the screen-door effect, making it particularly appealing for simulation games (like flight or racing sims) and professional applications where detail is important. [4][2][5][12] The headset's comfort due to its light weight and the simplicity of the inside-out tracking setup were also noted as positives. [4][2]
However, the headset faced criticism for several aspects. The Windows Mixed Reality platform and software were often seen as less refined and having a smaller content library compared to Oculus or SteamVR ecosystems. [4][2] The inside-out tracking, while convenient, was considered less robust and prone to more jitter and controller occlusion issues than competing systems, particularly impacting experiences requiring fast or wide arm movements. [4][2] The first-generation WMR controllers were criticized for their ergonomics and occasionally loose battery covers. [4][2] The lack of hardware IPD adjustment was a drawback for users outside the optimal range, and the thick cable was cumbersome. [4][2] Some users also reported reliability issues. [12]
Overall, it was seen as a headset offering best-in-class visual fidelity for its time, but compromised by limitations in tracking, controller design, and the WMR software environment. [4][2][5]
