IIS VFX3D
| IIS VFX3D | |
|---|---|
| Basic Info | |
| VR/AR | Virtual Reality |
| Type | Head-mounted display |
| Subtype | PC VR |
| Platform | PC |
| Creator | Interactive Imaging Systems (IIS) |
| System | |
| CPU | Host PC dependent |
| GPU | Host PC dependent |
| Storage | |
| Display | |
| Display | 2 x Color LCD |
| Resolution | 380 x 337 per eye (360,000 pixels) |
| Image | |
| Optics | |
| Tracking | |
| Tracking | 3DoF (VOS solid-state sensors) |
| Audio | |
| Connectivity | |
| Connectivity | USB |
| Device | |
| Sensors | Solid-state sensors (3-axis) |
| Input | 3DoF controller |
Property "Creator" (as page type) with input value "Interactive Imaging Systems]] (IIS)" contains invalid characters or is incomplete and therefore can cause unexpected results during a query or annotation process.

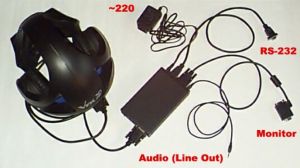

The IIS VFX3D was a virtual reality head-mounted display developed by Interactive Imaging Systems, Inc. (IIS). Released on January 24, 2000, the VFX3D was positioned as the successor to the Forte VFX1 and represented one of the final consumer VR products released before interest in virtual reality waned in the early 2000s.[1]
History and Development
Company Background
Interactive Imaging Systems (IIS) was founded in 1997 after purchasing the assets of Forte Technologies, the company behind the pioneering Forte VFX1 VR headset. IIS would later become Vuzix, continuing to operate in the wearable display market as of 2023.
VFX3D Announcement
On January 24, 2000, IIS announced the release of the VFX3D from their headquarters in Rochester, NY. The company positioned it as part of their "New Generation high performance virtual reality peripherals."[2]
End of an Era
The VFX3D emerged at the tail end of the 1990s VR boom. As the decade concluded, interest in VR declined sharply, and most VR devices released during this period were commercial failures. There would not be another significant attempt at consumer VR for more than a decade, until the emergence of the Oculus Rift and other modern headsets.[3]
Design and Hardware
Display System
The VFX3D featured dual color LCD displays:
- Pixel Count: 360,000 pixels per display
- Resolution: 380 x 337 per eye
- Refresh Rate: 75 Hz
- Stereoscopic: Yes
The display offered improved resolution and color reproduction compared to the VFX1, which had 180,000 subpixels per display.
Field of View
The VFX3D had a 35-degree diagonal field of view. This was notably narrower than the VFX1's 45-degree FOV, representing a trade-off for other improvements.
Optical System
The VFX3D used a fixed-focus IPD optics engine, which simplified the design but removed the adjustability offered by the VFX1.
Tracking System
VOS Head Tracking
The VFX3D incorporated IIS's patented VOS 3DoF head tracking system, which was completely redesigned from the VFX1:
- Sensors: Solid-state sensors on all three axes
- Degrees of Freedom: 3DoF (yaw, pitch, roll)
- Improved Accuracy: Enhanced tracking performance over previous generation
Connectivity
USB Interface
The VFX3D featured an improved Universal Serial Bus (USB) interface for simplified installation, replacing the ISA card requirement of the VFX1. This made the headset compatible with a wider range of computers, including laptops.
Comparison with VFX1
| Feature | VFX1 | VFX3D |
|---|---|---|
| Release Year | 1995 | 2000 |
| Resolution | 263 x 230 per eye | 380 x 337 per eye |
| Pixel Count | 180,000 subpixels | 360,000 pixels |
| Refresh Rate | 60 Hz | 75 Hz |
| Field of View | 45° | 35° |
| Interface | ISA card | USB |
| Optics | Adjustable | Fixed |
| Controller | Cyberpuck (2DoF) | 3DoF controller |
| Color Reproduction | 256 colors | Improved |
Improvements
- Doubled pixel resolution
- Better color reproduction
- Improved refresh rate
- Simplified USB connectivity
- Redesigned solid-state head tracking
Trade-offs
- Reduced field of view (35° vs 45°)
- Fixed optics (no IPD adjustment)
- No Cyberpuck controller
Applications
The VFX3D was designed for multiple use cases:
- Gaming: PC gaming with stereoscopic 3D support
- Education: Educational VR applications
- CAD Systems: Computer-aided design visualization
- Desktop/Laptop: Compatible with both desktop PCs and laptops
Specifications
| Specification | Details |
|---|---|
| Display Type | 2 x Color LCD |
| Pixel Count | 360,000 per display |
| Resolution | 380 x 337 per eye |
| Refresh Rate | 75 Hz |
| Field of View | 35° diagonal |
| Head Tracking | 3DoF (VOS solid-state) |
| Controller Tracking | 3DoF |
| Interface | USB |
| Platform | Desktop PC, Laptop |
Legacy
The VFX3D was one of the last consumer VR headsets released before the long "VR winter" that lasted from the early 2000s until the emergence of the Oculus Rift around 2012. The technology and expertise developed by IIS continued through the company's evolution into Vuzix, which remains active in the augmented reality and wearable display market.
